Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

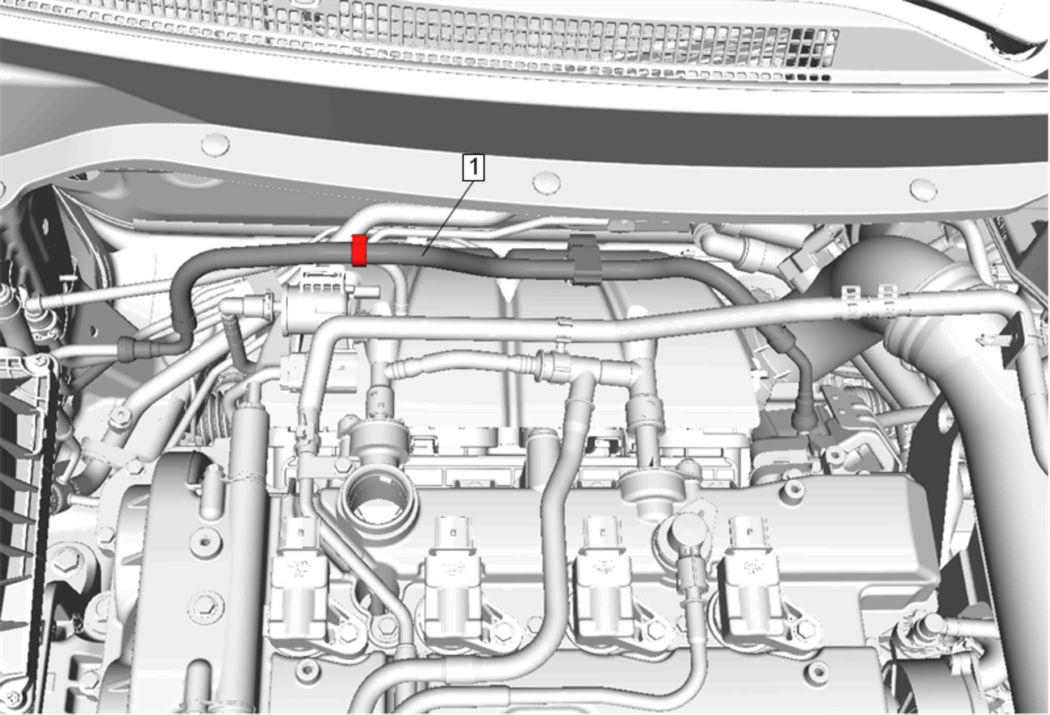

Fig 1: Fuel Feed Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Relieve the fuel system pressure. Fuel Pressure Relief Intake Manifold Cover Replacement Reposition the engine wiring harness as necessary.
1	Fuel Feed Front Pipe Procedure Disconnect the fuel feed front pipe and remove from retainer. Metal Collar Quick Connect Fitting Service Pressurize fuel system and check for fuel leaks.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Feed Front Pipe

Procedure

Disconnect the fuel feed front pipe and remove from retainer. Metal Collar Quick Connect Fitting Service
Pressurize fuel system and check for fuel leaks.
