Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Disconnect Fuel Feed Front Pipe - Fuel Feed Front Pipe Replacement
    3. Fig 1: Fuel Feed Pipe And Retainer
    GM4598958Courtesy of GENERAL MOTORS COMPANY
  3. Remove Fuel Feed Pipe (1) @ Retainer (2) -[4x]
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle .

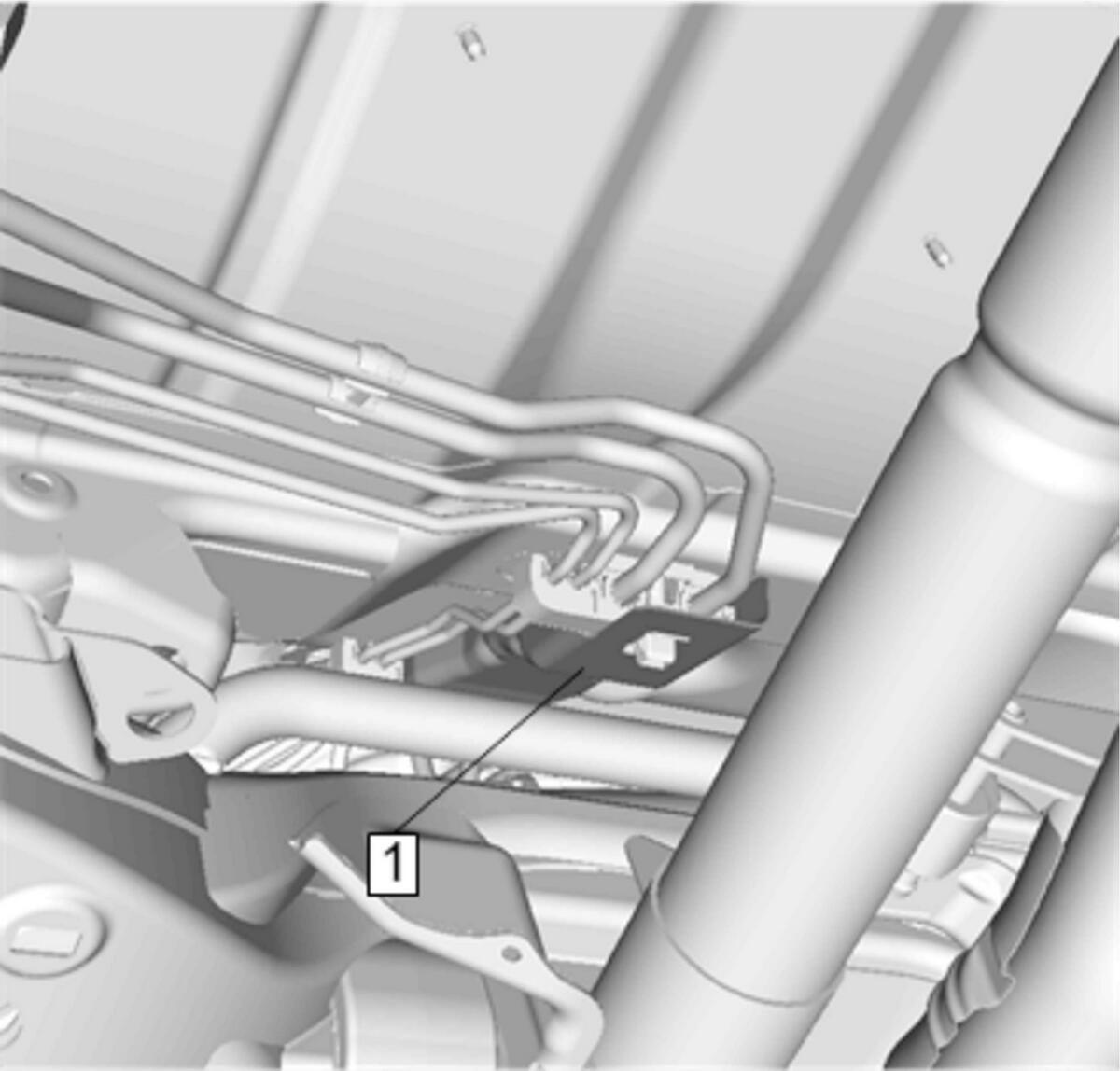

    5. Fig 2: Shield
    GM4598992Courtesy of GENERAL MOTORS COMPANY
  5. Remove Shield (1).

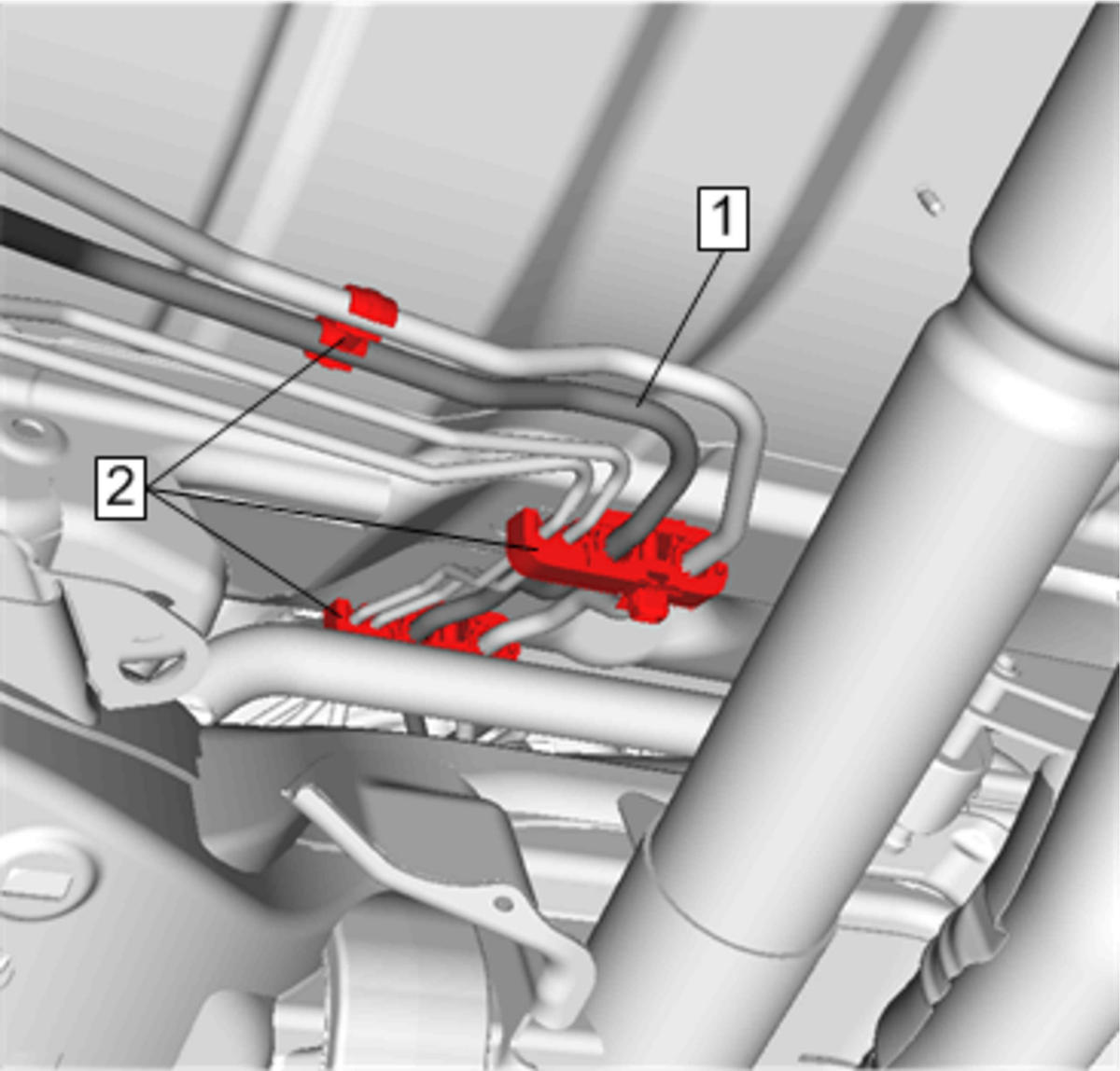

    6. Fig 3: Fuel Feed Pipe And Retainer
    GM4598996Courtesy of GENERAL MOTORS COMPANY
  6. Remove Fuel Feed Pipe (1) @ Retainer (2) - [3x]
  7. Remove Underbody Rear Air Deflector - Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)

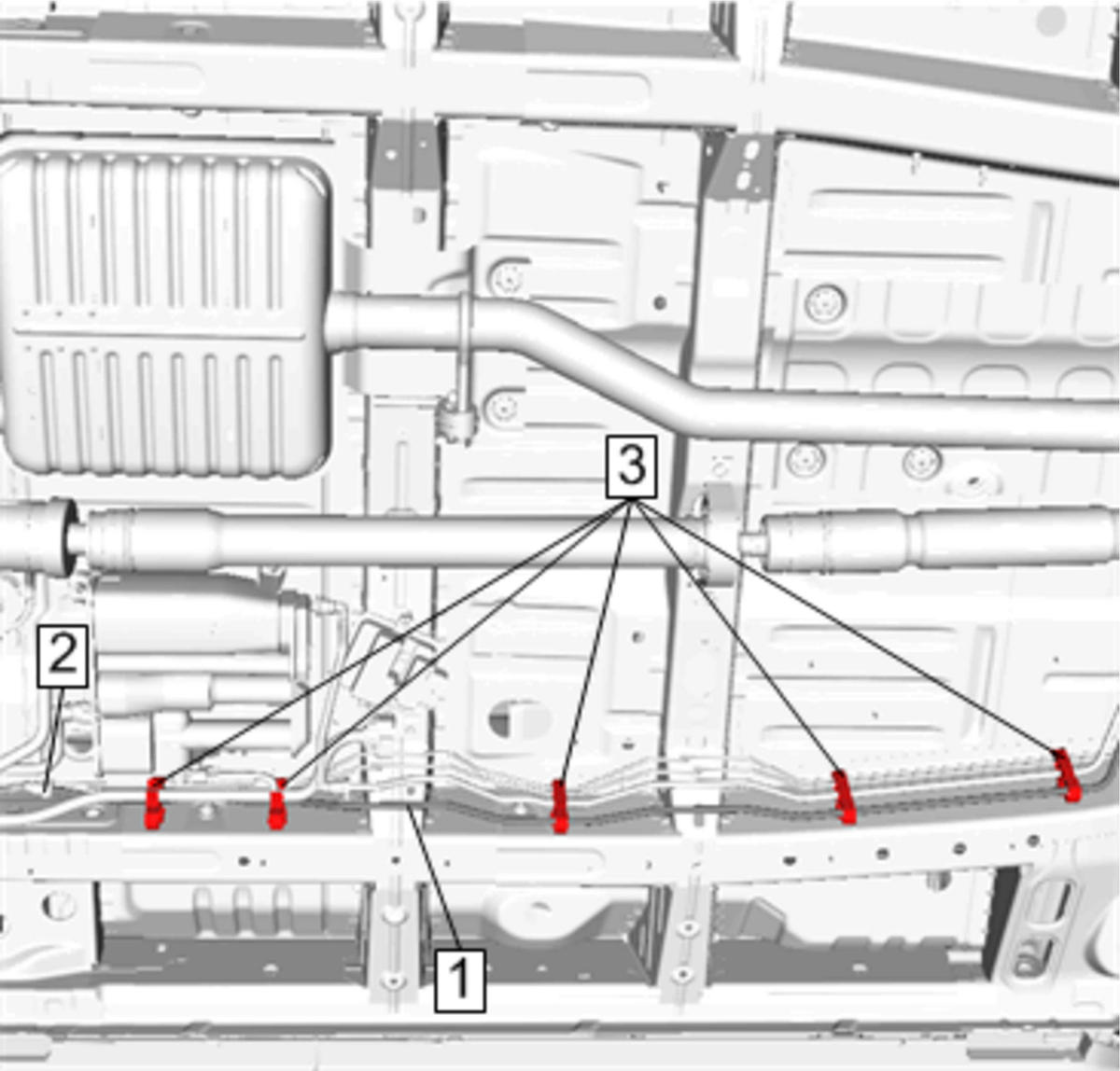

    8. Fig 4: Fuel Feed Pipe And Fuel Pump Fuel Feed Hose
    GM4599001Courtesy of GENERAL MOTORS COMPANY
  8. Disconnect Fuel Feed Pipe (1) @ Fuel Pump Fuel Feed Hose (2) - Plastic Collar Quick Connect Fitting Service
  9. Remove Fuel Feed Pipe (1) @ Retainer (2) - [5x]
