Installation Procedure

WARNING: This page is about a different variant/trim than selected.

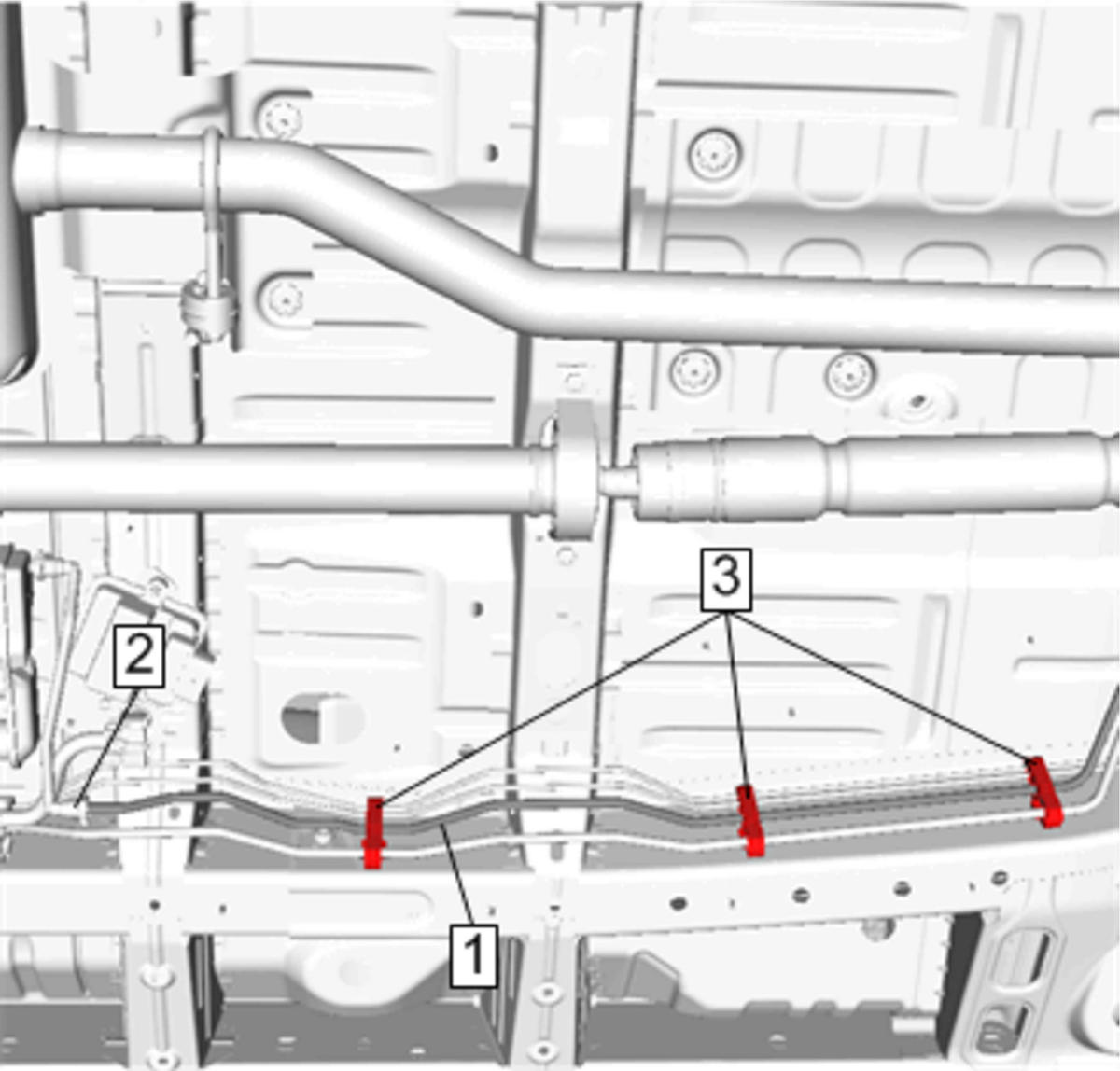

    Fig 1: Evaporative Emission Front Pipe And Retainer
    GM4598986Courtesy of GENERAL MOTORS COMPANY
  1. Install Evaporative Emission Front Pipe (1) @ Retainer (3) [3x]
  2. Connect Evaporative Emission Front Pipe (1) @ Evaporative Emission Canister Purge Solenoid Valve Hose (2) - Plastic Collar Quick Connect Fitting Service
  3. Install Underbody Rear Air Deflector - Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)

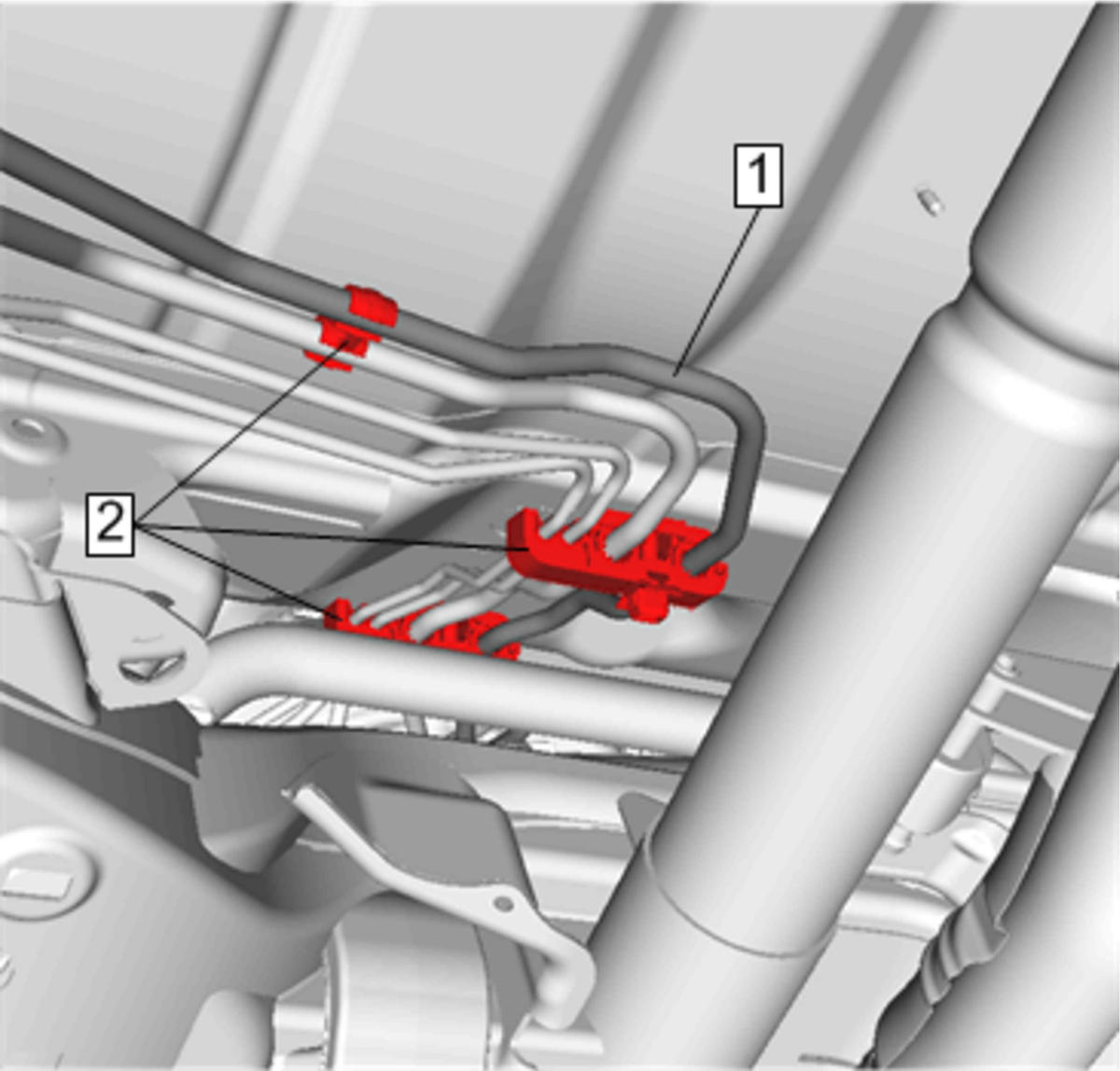

    4. Fig 2: Evaporative Emission Front Pipe And Retainer
    GM4598981Courtesy of GENERAL MOTORS COMPANY
  4. Install Evaporative Emission Front Pipe (1) @ Retainer (2) - [3x]
    5. Fig 3: Shield
    GM4598992Courtesy of GENERAL MOTORS COMPANY
  5. Install Shield (1)
  6. Lower the vehicle.

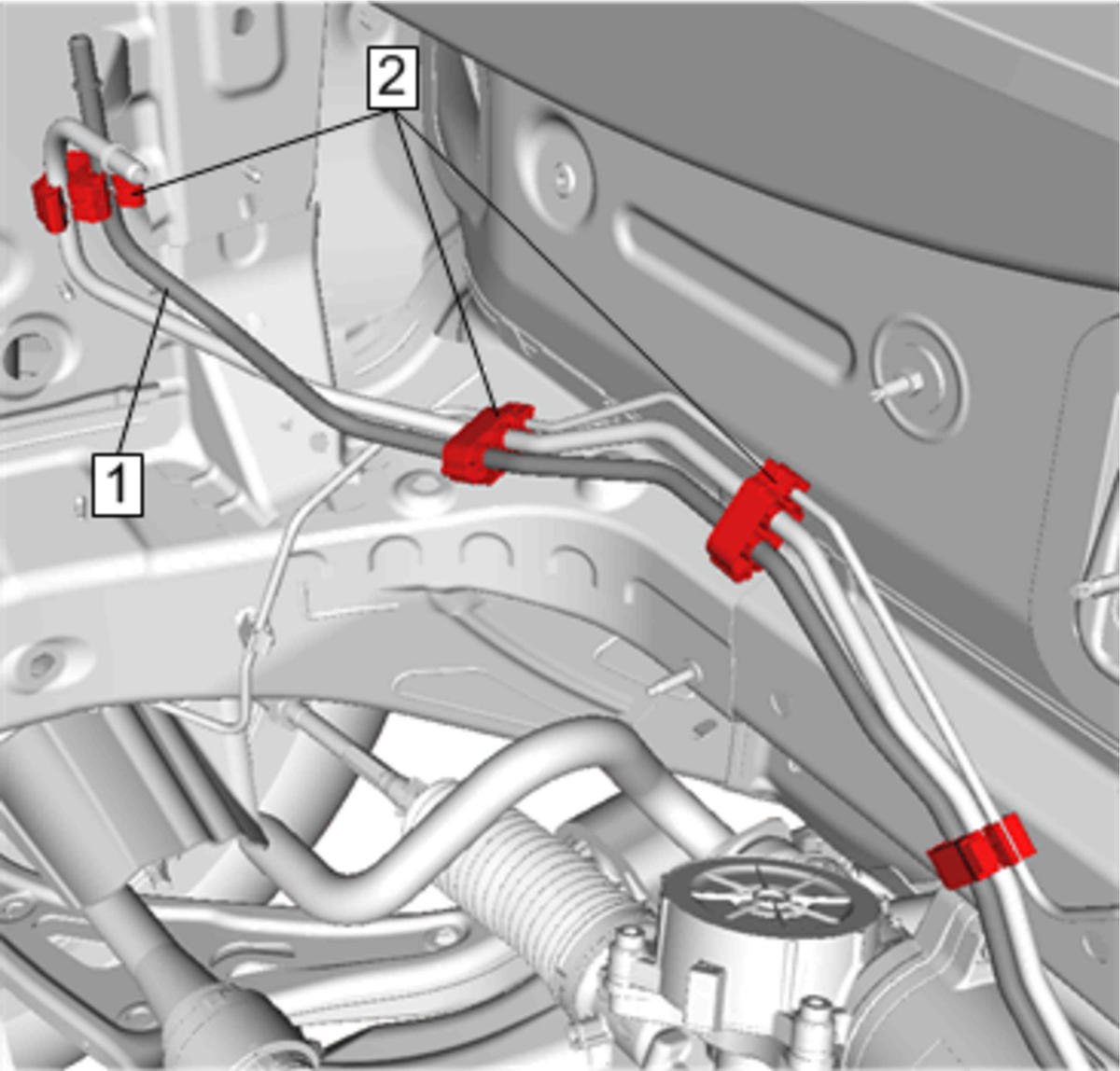

    7. Fig 4: Evaporative Emission Front Pipe And Retainer
    GM4598947Courtesy of GENERAL MOTORS COMPANY
  7. Install Evaporative Emission Front Pipe (1) @ Retainer (2) - [4x]
  8. Install Evaporative Emission Front Hose - Evaporative Emission Front Hose Replacement
