Evaporative Emission Front Hose Replacement

WARNING: This page is about a different variant/trim than selected.

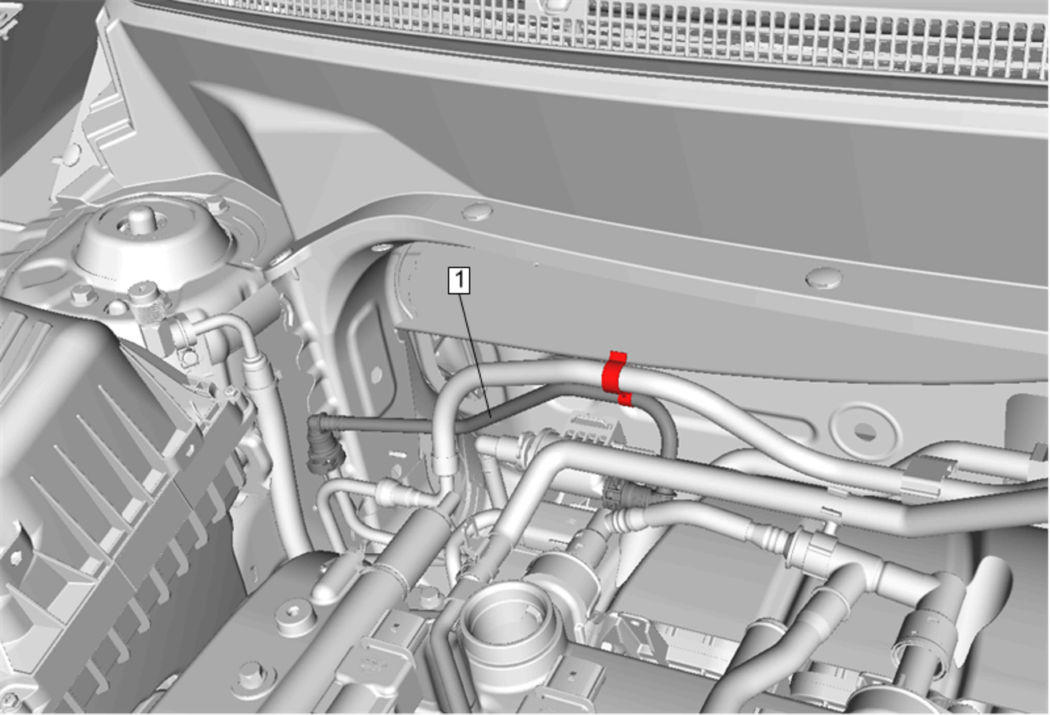

Fig 1: Evaporative Emission Front Hose
GM4640422Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Evaporative Emission Front HoseProcedure Disconnect evaporative emission front hose and remove from retainers. Plastic Collar Quick Connect Fitting Service
