Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Intake Manifold Gasket
    GM4340698Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Intake Manifold Gasket (1)
  2. Install Intake Manifold.
  3. Raise the front of the engine back into position.
    4. Fig 2: Engine Mount Bracket Bolts
    GM4665540Courtesy of GENERAL MOTORS COMPANY
  4. Install Engine Mount Bolt (1) - [2x] - Engine Mount Replacement

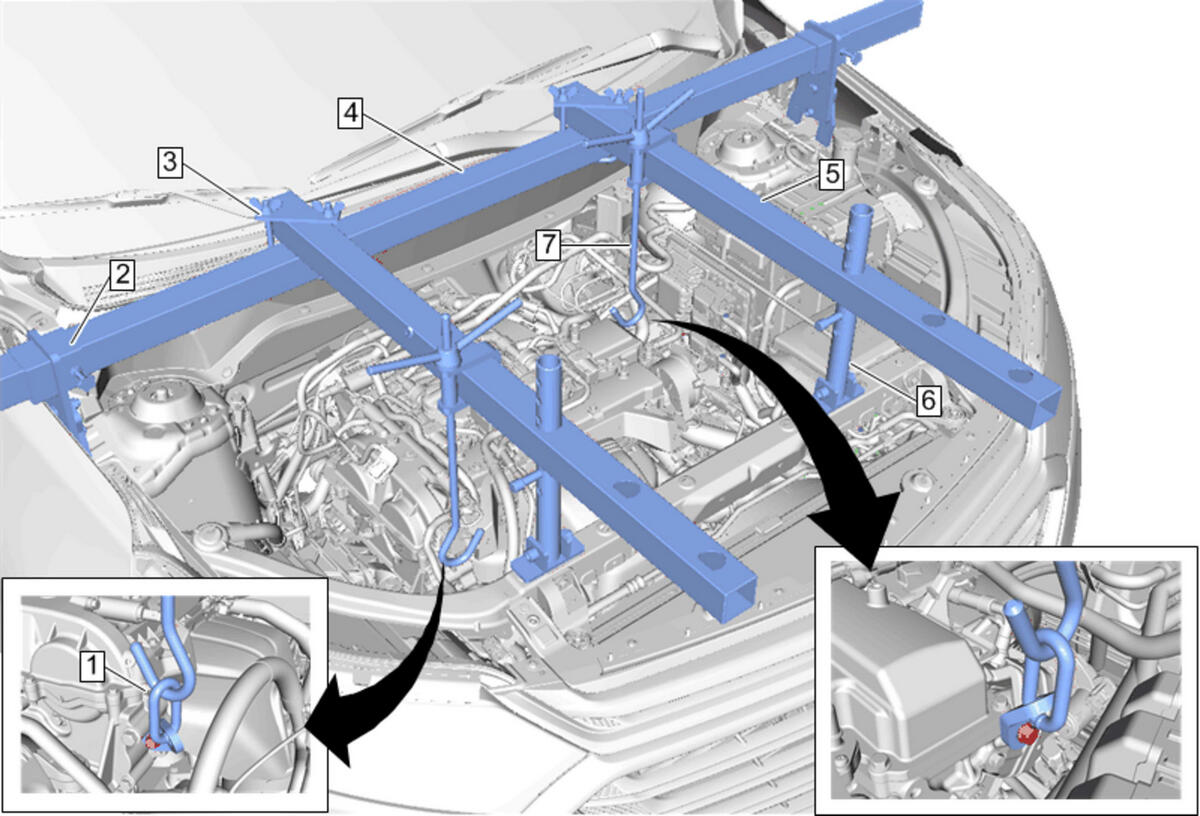

    5. Fig 3: Engine Support Fixture
    GM4677526Courtesy of GENERAL MOTORS COMPANY
  5. Remove Engine Support Fixture (1, 2, 3, 4. 6, and 7) - Engine Support Fixture
  6. Install the fuel injection fuel rail fuel pressure sensor. Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement
    7. Fig 4: Intake Manifold And Bolts
    GM4340592Courtesy of GENERAL MOTORS COMPANY
  8. Loosely install Upper Intake Manifold Bolt (3)
  9. Raise the vehicle. Lifting and Jacking the Vehicle
  10. Loosely install Lower Intake Manifold Bolt.
    11. Fig 5: Intake Manifold Bolts tightening Sequence
    GM4340695Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  11. tighten in sequence

    tighten

    1. First Pass:12 N.m (106 lb in)
    2. Final Pass:12 N.m (106 lb in)

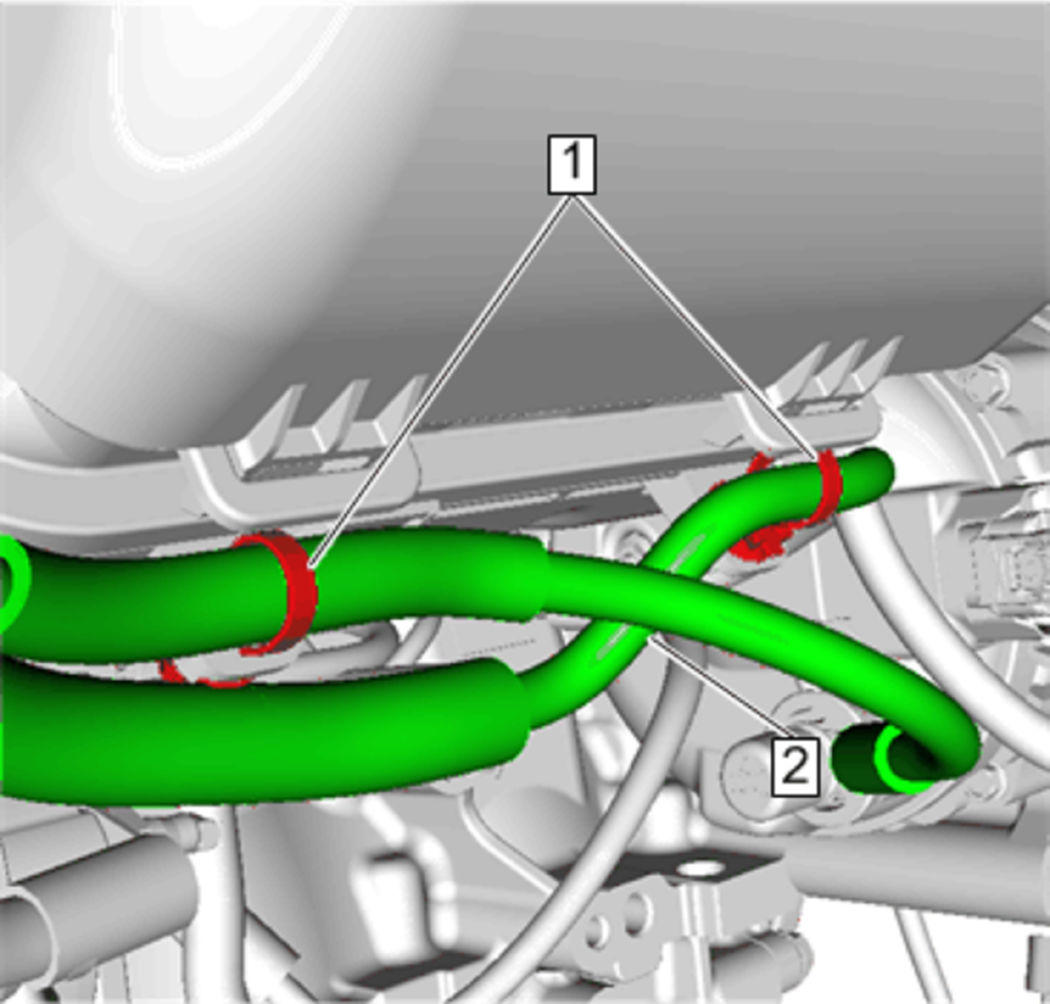

    12. Fig 6: Wiring Harness And Retainers
    GM4663664Courtesy of GENERAL MOTORS COMPANY
  12. Reposition the harness (2) as needed, then install the wiring harness retainers (1).

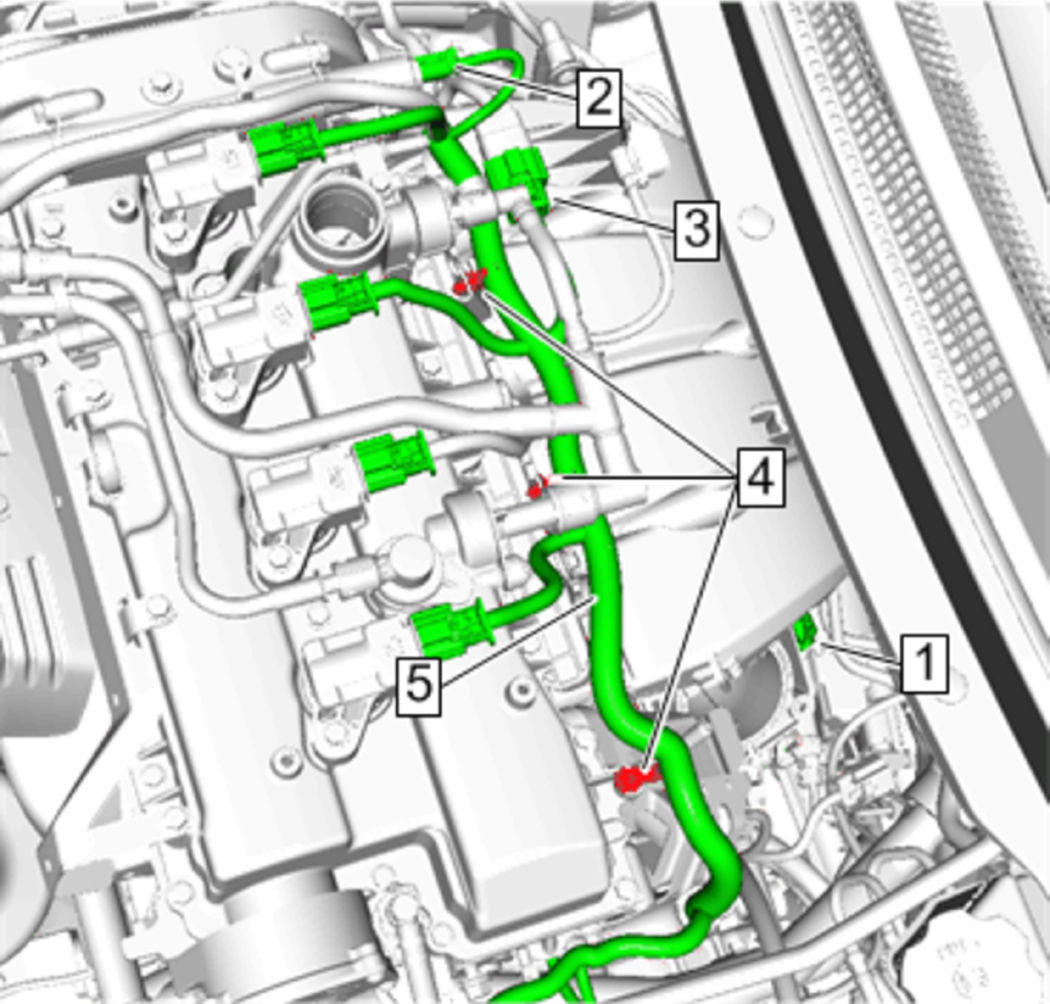

    13. Fig 7: Electrical Connector And Engine Wiring Harness
    GM4672810Courtesy of GENERAL MOTORS COMPANY
  13. Reposition Engine Wiring Harness (5)
  14. Connect Electrical Connector (2)
  15. Connect Electrical Connector (3)
  16. Connect Wiring Harness Retainer (4) [3x]
  17. Connect Electrical Connector (1)

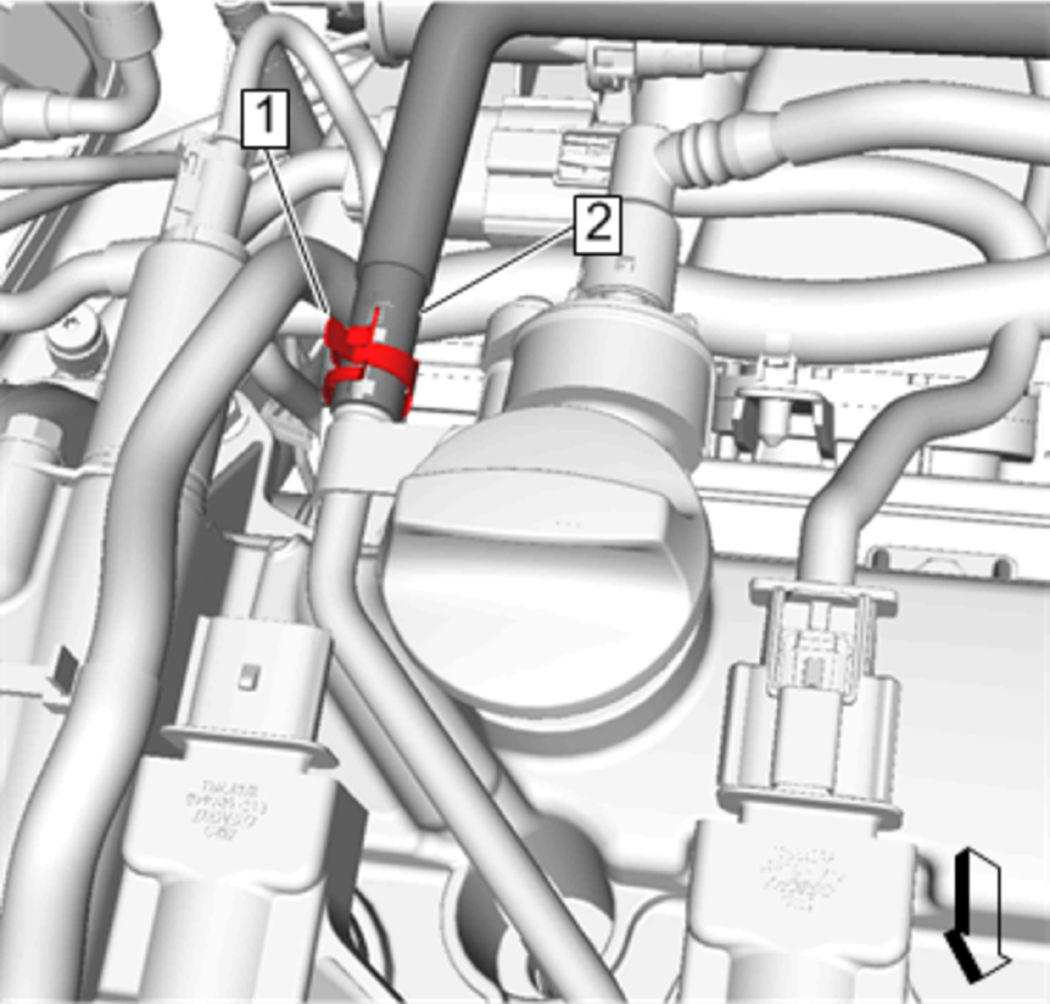

    18. Fig 8: Engine Coolant Air Bleed Hose Clamp
    GM4645731Courtesy of GENERAL MOTORS COMPANY
  18. Reposition and connect the engine cooant air bleed hose (2) as necessary. Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Radiator to Engine Coolant Air Bleed Pipe LTG)
  19. Install Throttle Body Assembly -Throttle Body Assembly Replacement
  20. Install Fuel Feed Front Pipe - Fuel Feed Front Pipe Replacement
  21. Install Evaporative Emission Canister Purge Solenoid Valve - Evaporative Emission Canister Purge Solenoid Valve Replacement
  22. Install Air Cleaner Outlet Duct - Air Cleaner Outlet Duct Replacement (Non-Tamperproof)Air Cleaner Outlet Duct Replacement (Tamperproof)
  23. Remove Intake Manifold Cover - Intake Manifold Cover Replacement
