Intake Manifold Cover Replacement

WARNING: This page is about a different variant/trim than selected.

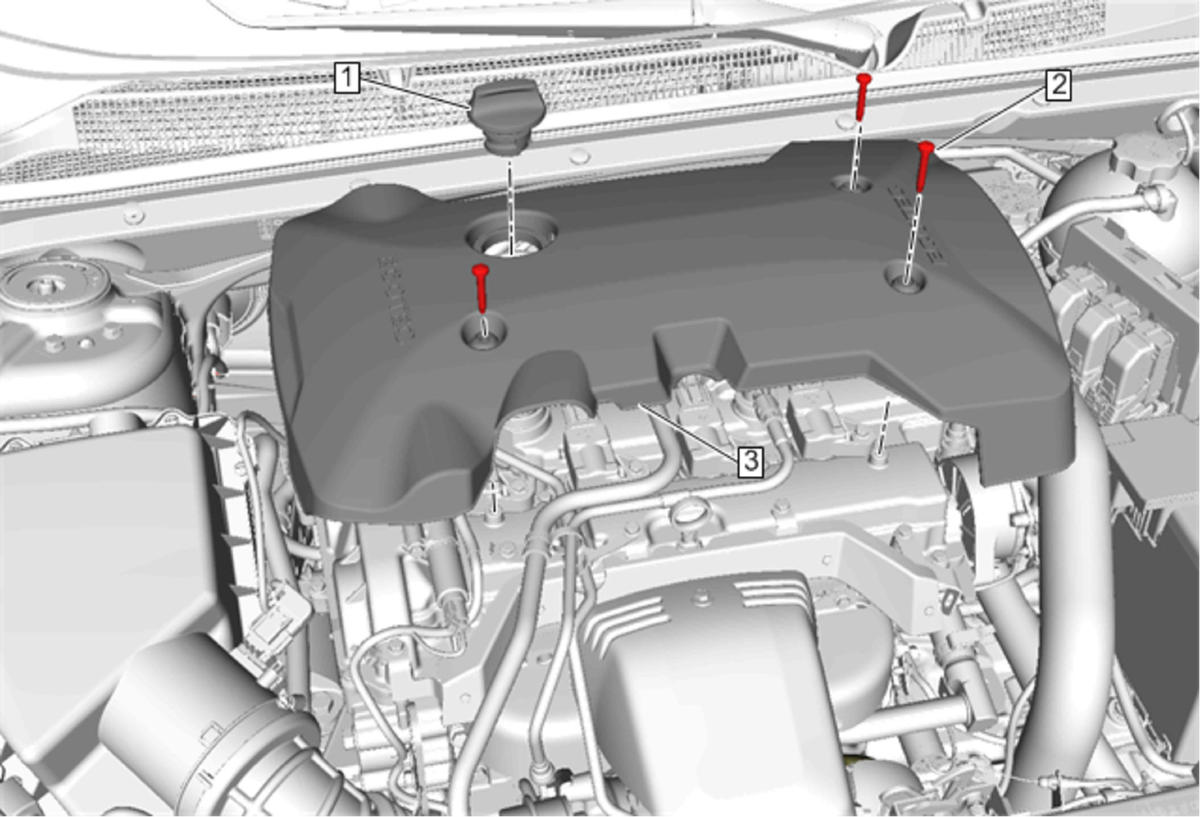

Fig 1: Intake Manifold Cover
GM4237868Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Engine Oil Filler Cap
2 Intake Manifold Cover Bolt [3x]
CAUTION:

Refer to Fastener Caution .


tighten
9 N.m (80 lb in)
3 Intake Manifold Cover
