Installation Procedure
WARNING: This page is about a different variant/trim than selected.

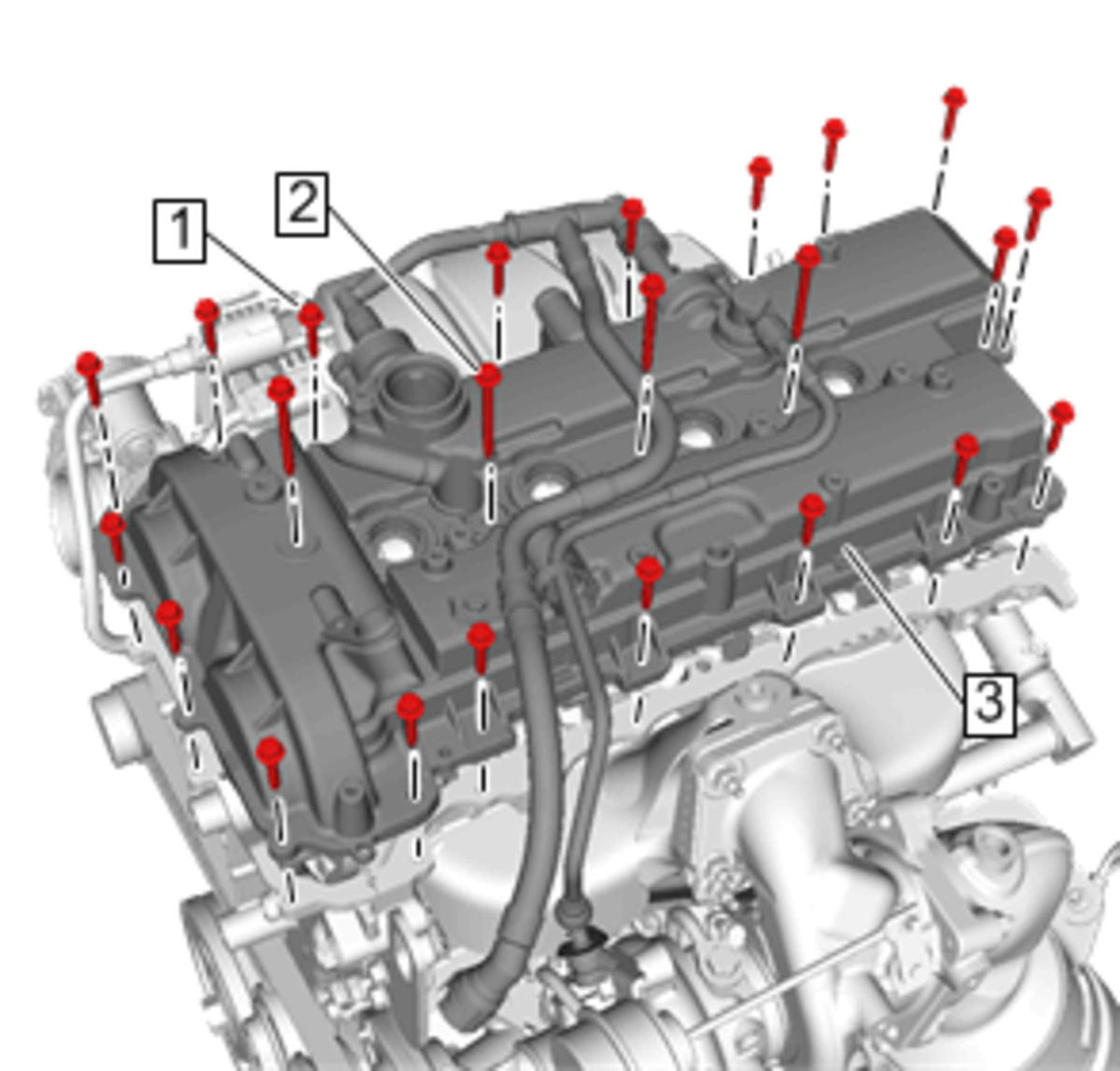

- Install Camshaft Cover Gasket (1)
- Install Camshaft Cover (3).
- Loosely install Camshaft Cover Bolt (1, 2).

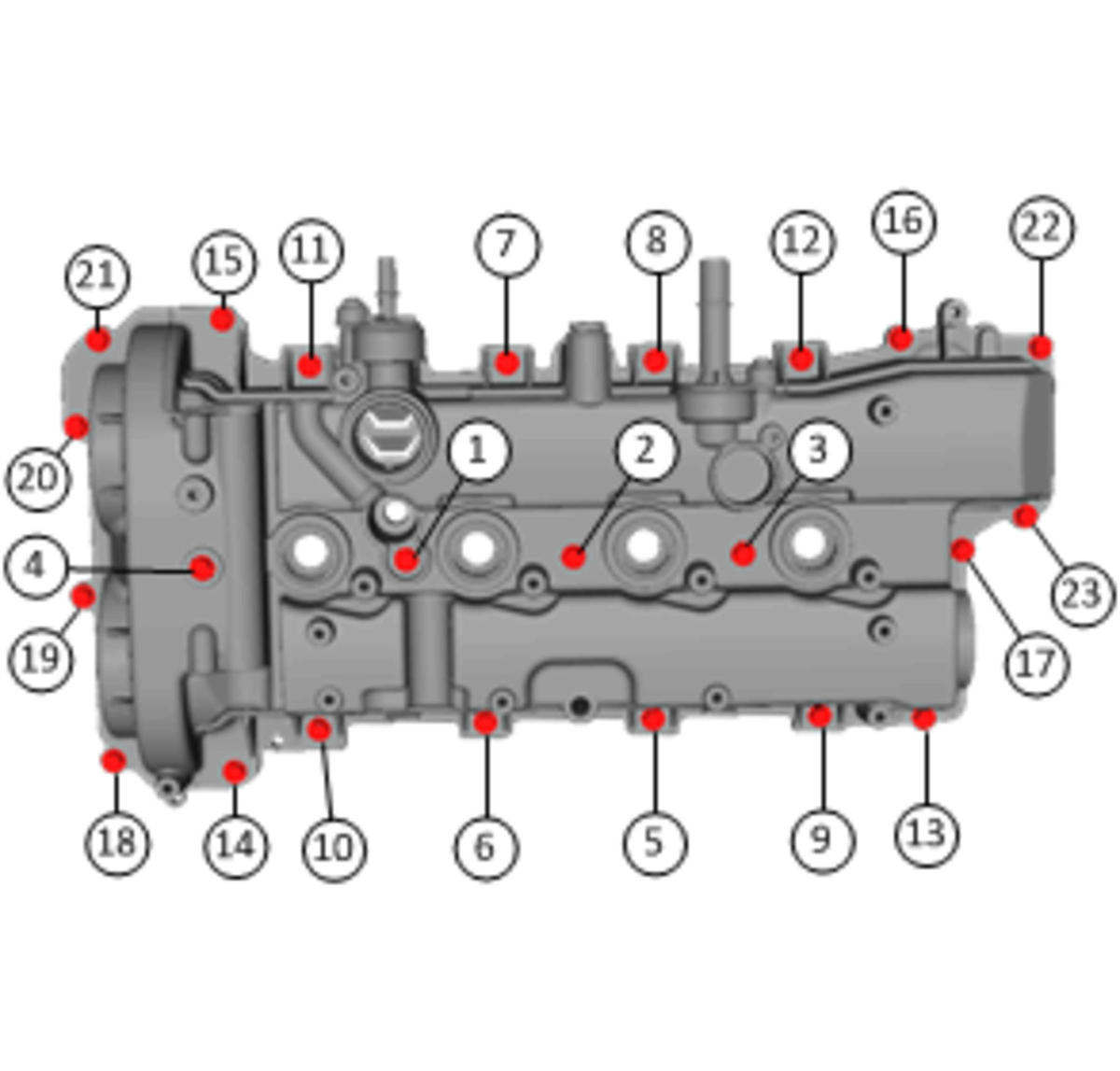

- tighten the camshaft cover bolts in sequence to 10 N.m (89 lb in).
- Reposition and reconnect engine wiring harness.
- Install Camshaft Cover Heat Shield - Camshaft Cover Heat Shield Replacement
- Inspect the O-ring and replace if necessary. (3)
- Connect Positive Crankcase Ventilation Hose Fitting (2).
- Install Positive Crankcase Ventilation Hose Fitting Bolt (1) and tighten 8 N.m (71 lb in)
- Install Camshaft Position Actuator Solenoid Valve - Exhaust - Camshaft Position Actuator Exhaust Solenoid Valve Replacement
- Install Camshaft Position Actuator Solenoid Valve - Intake - Camshaft Position Actuator Intake Solenoid Valve Replacement
- Install the engine oil level indicator.
- Install Turbocharger Heat Shield - Turbocharger Heat Shield Replacement
- Air Cleaner Outlet Duct Clamp - tighten - Air Cleaner Outlet Duct Replacement (Non-Tamperproof)Air Cleaner Outlet Duct Replacement (Tamperproof)
- Install Turbocharger Coolant Return Pipe - Turbocharger Coolant Return Pipe Replacement (LTG)
- Install Engine Coolant Air Bleed Pipe - Engine Coolant Air Bleed Pipe Replacement (LTG)
- Install Vacuum Pump - Vacuum Pump Replacement
- Install Ignition Coil - Ignition Coil Replacement
NOTE:
Install a NEW gasket.
NOTE:
Add 14mm bead of sealant at right and left T-Joint where front cover meets head and at rear of camshaft cover right and left T-Joint where vacuum pump bolts on.
NOTE:
Ensure the long camshaft cover bolts (2) are installed in the correct positions.
CAUTION:
Refer to Fastener Caution .
NOTE:
Always ensure the PCV hose fitting O-Ring (3) seal is free of cuts or abrasions each time the fitting is attached to the turbocharger.
