Installation Procedure

WARNING: This page is about a different variant/trim than selected.

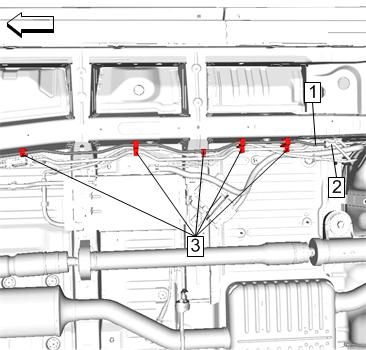

Fig 1: Fuel Feed Pipe, Fuel Pump Fuel Feed Hose And Retainers

GM4701584

Courtesy of GENERAL MOTORS COMPANY

Install fuel feed pipe (1) into the vehicle.
Install Fuel Feed Pipe (1) @ Retainers (3) (Qty: 5)
Connect Fuel Feed Pipe (1) @ Fuel Pump Fuel Feed Hose (2). Refer to Plastic Collar Quick Connect Fitting Service
Install Underbody Rear Air Deflector. Refer to Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)

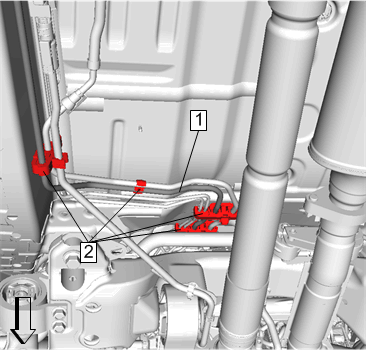

Fig 2: Fuel Feed Pipe And Retainers

GM4701580

Courtesy of GENERAL MOTORS COMPANY

Install Fuel Feed Pipe (1) @ Retainers (2) (Qty: 4)

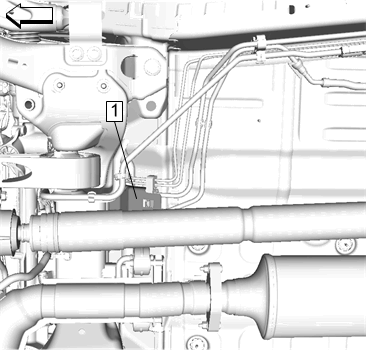

Fig 3: Shield

GM4701577

Courtesy of GENERAL MOTORS COMPANY

Install Shield (1)

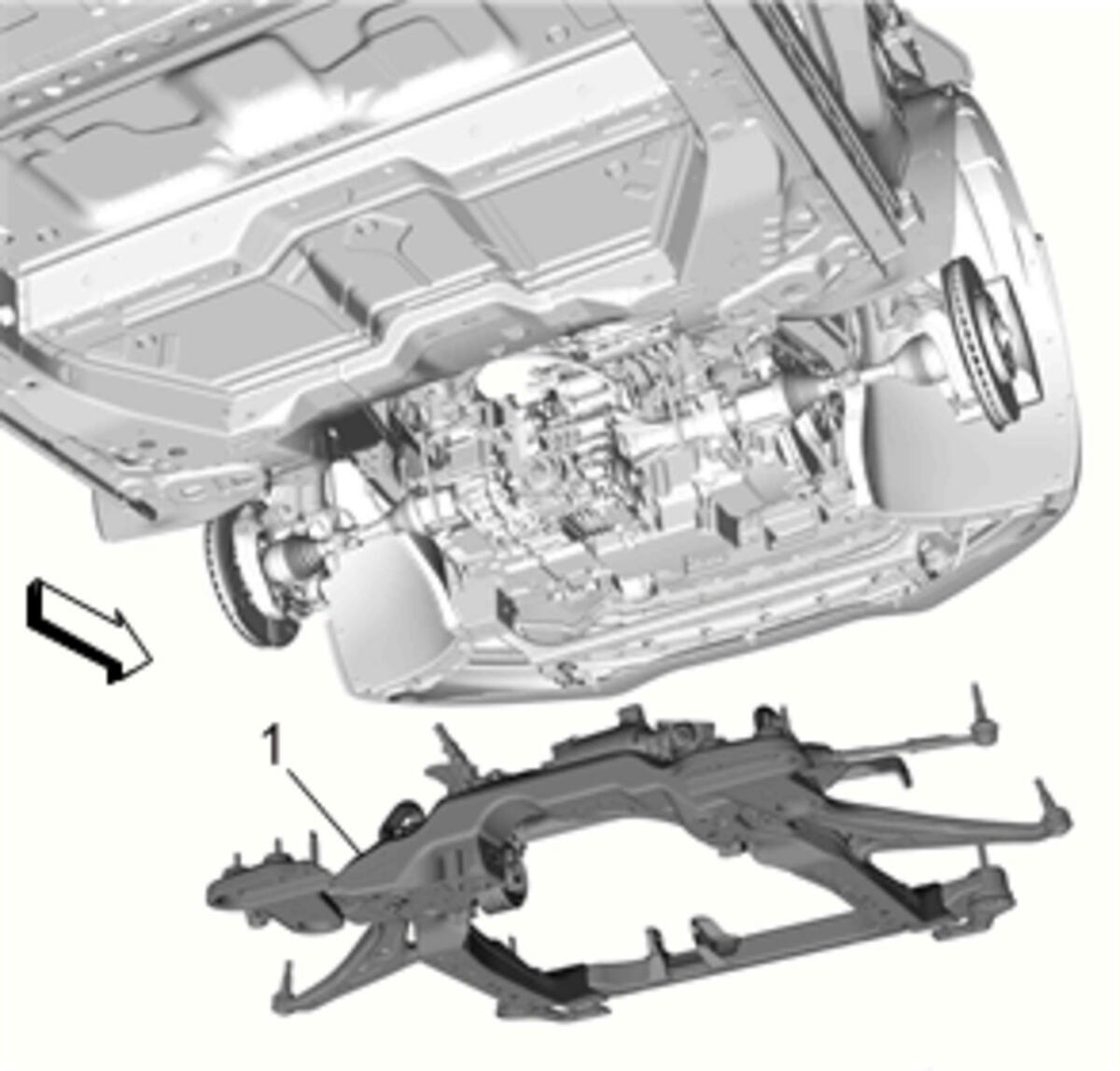

Fig 4: Drivetrain And Front Suspension Cradle

GM3914485

Courtesy of GENERAL MOTORS COMPANY

Install Drivetrain and Front Suspension Cradle (1). Refer to Drivetrain and Front Suspension Cradle Replacement (All Wheel Drive)
Lower the vehicle.

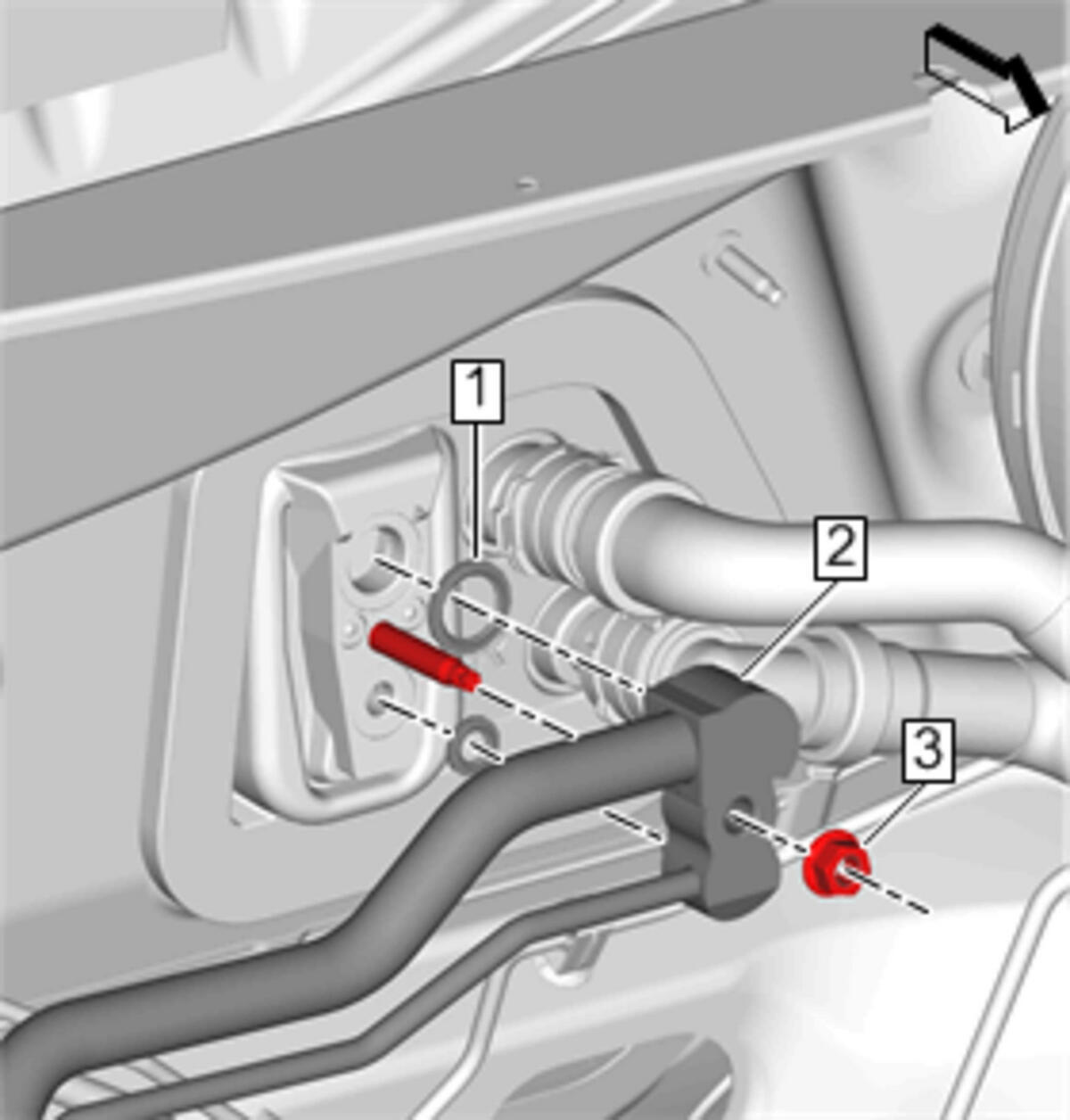

Fig 5: Air Conditioning Refrigerant Heat Exchanger, Nut And Seals

GM4597877

Courtesy of GENERAL MOTORS COMPANY

Install Air Conditioning Refrigerant Heat Exchanger (2). Refer to Air Conditioning Refrigerant Heat Exchanger Replacement (LH7)

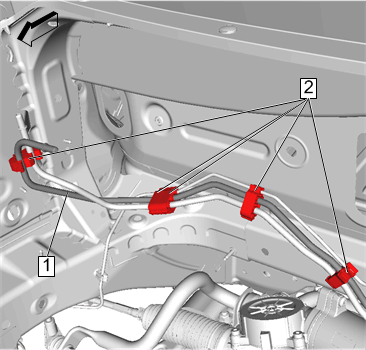

Fig 6: Fuel Feed Pipe And Retainers

GM4892370

Courtesy of GENERAL MOTORS COMPANY

Install Fuel Feed Pipe (1) @ Retainers (2) (Qty: 5)
Connect Fuel Feed Front Pipe. Refer to Fuel Feed Front Pipe Replacement
Prime the fuel system. Refer to Fuel System Priming
Pressurize fuel system and check for fuel leaks.
