Rear Compartment Side Trim Replacement - Right Side (Hatchback)

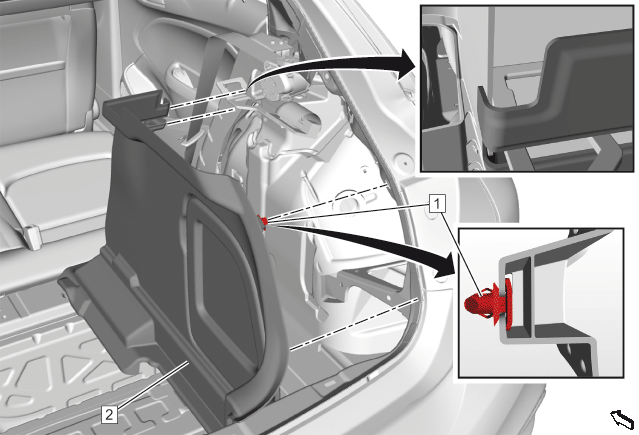

GM4377213
Callout Component Name
Preliminary Procedure
Liftgate Sill Garnish Molding Replacement
Body Lock Pillar Upper Trim Panel Replacement
1 Rear Compartment Side Trim Retainer
Procedure
Use a flat bladed plastic tool to remove.
2 Rear Compartment Side Trim
Procedure
Disconnect the rear compartment courtesy lamp.
