Body Lock Pillar Upper Trim Panel Replacement

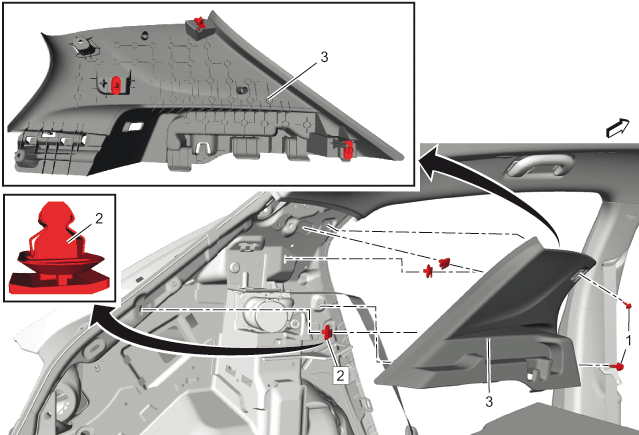

Callout	Component Name
Preliminary Procedures Luggage Shade Replacement Rear Seat Back Bolster Replacement
1	Body Lock Pillar Upper Trim Panel Fastener [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in) Procedure Use a flat bladed trim tool to open the fastener cap.
2	Body Lock Pillar Upper Trim Panel Clip [3x]
3	Body Lock Pillar Upper Trim Panel Procedure Use a flat bladed plastic tool to remove. Remove the upper rear seat belt retractor bolt. Rear Seat Belt Retractor Replacement (Notchback)Rear Seat Belt Retractor Replacement (Hatchback)
