Liftgate Sill Garnish Molding Replacement

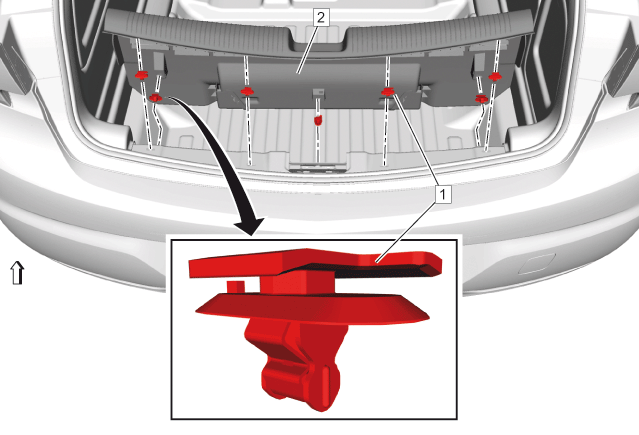

GM4197162
Callout Component Name
Preliminary Procedures
Rear Compartment Floor Panel Trim Replacement (Notchback) Rear Compartment Floor Panel Trim Replacement (Hatchback)
Rear Compartment Floor Panel Trim Support Replacement
1 Liftgate Sill Garnish Molding Clip [7x]
2 Liftgate Sill Garnish Molding
Procedure
Use a flat bladed plastic tool to remove.
Replace the disabled vehicle warning triangle reflector.
