Instrument Panel Compartment Replacement

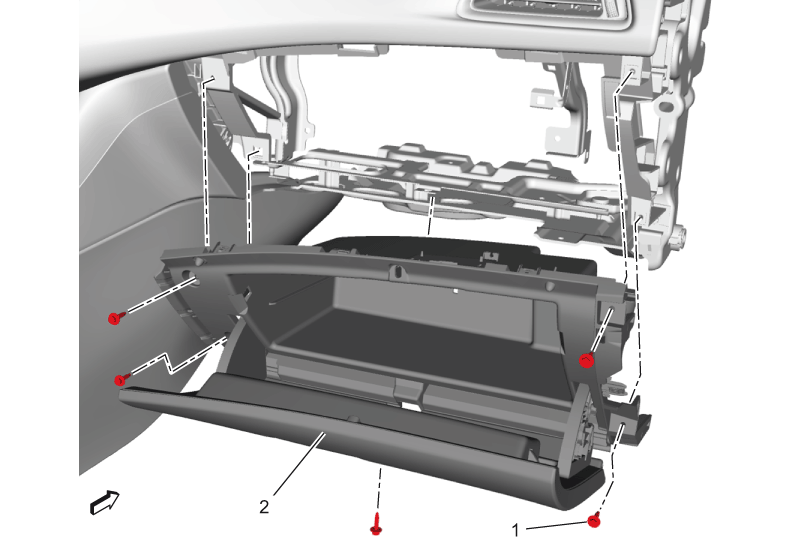

GM4422282
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Lower Trim Panel Insulator Replacement
  2. Instrument Panel Outer Trim Cover Replacement - Right Side
  3. Instrument Panel Fuse Block Access Cover Frame Replacement
1 Instrument Panel Compartment Fastener [5x]
CAUTION:

Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Compartment

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
