Instrument Panel Outer Trim Cover Replacement - Right Side
Instrument Panel Outer Trim Cover Replacement - Right Side

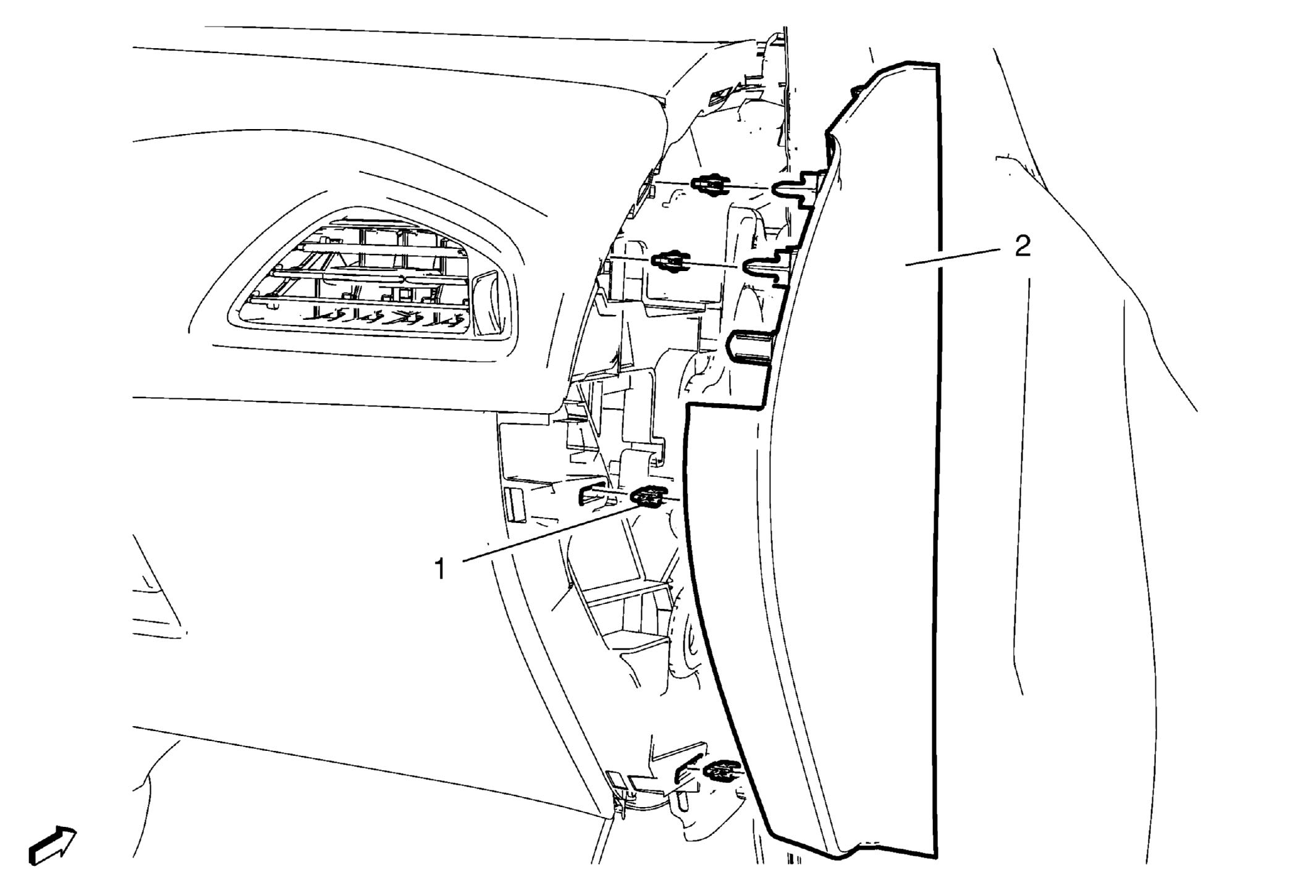

Callout
Component Name
1
Instrument Panel Outer Trim Cover Retainer [4x]
2
Instrument Panel Outer Trim Cover - Right Side
Procedure
Retainer - Loosen
Use a flat bladed plastic trim tool.
