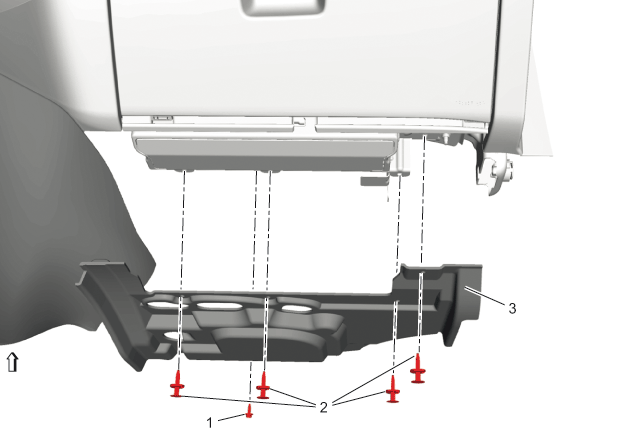

Instrument Panel Lower Trim Panel Insulator Replacement
Callout
Component Name
1
Instrument Panel Lower Trim Panel Insulator Fastener
CAUTION:
Fastener Caution
Tighten
2.5 N.m (22 lb in)
2
Instrument Panel Lower Trim Panel Insulator Retainer [4x]
Procedure
Use a flat bladed plastic tool to remove.
3
Instrument Panel Lower Trim Panel Insulator
