Body Harness Routing - Right Side of the Passenger Compartment

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

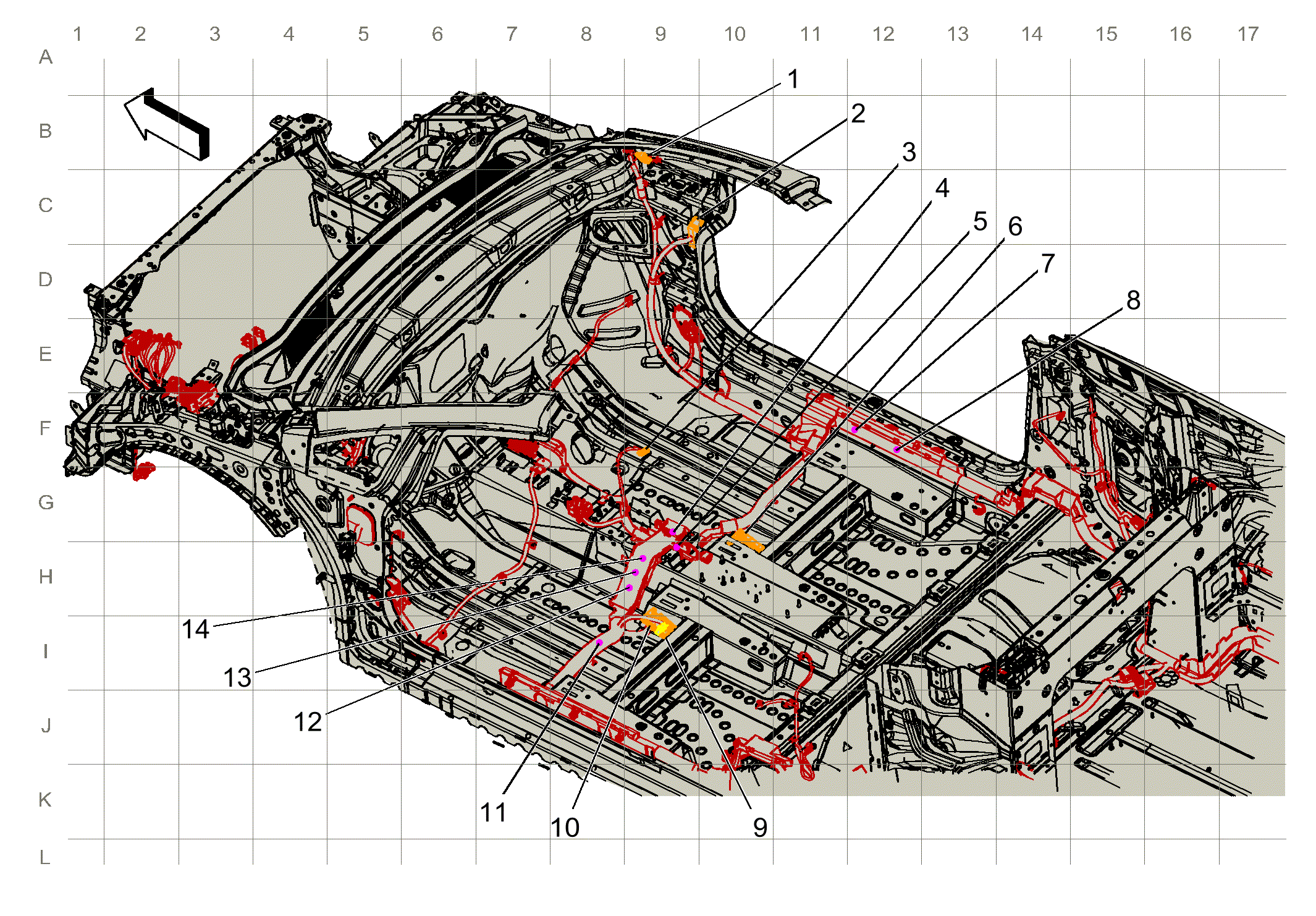

GM4239612Courtesy of GENERAL MOTORS COMPANY
Items
1. X207 Body Harness to Instrument Panel Harness X207 Body Harness to Instrument Panel Harness
2. X415
3. X210 Body Harness to Inside Rearview Mirror Harness X210 ISRVM Harness to Body Harness
4. X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness
5. X407
6. X305 Body Harness to Floor Console Harness X305 Body Harness to Floor Console Harness
7. J302 Body Harness
8. J301 Body Harness
9. X315 Body Harness to Passenger Seat Harness X315 Body Harness to Passenger Seat Harness
10. J312 Body Harness
11. J324 Body Harness
12. X311 Driver Seat Harness to Body Harness X311 Driver Seat Harness to Body Harness
13. X310 Body Harness to Driver Seat Harness X310 Body Harness to Driver Seat Harness
14. J318 Body Harness
15. J308 Body Harness
16. J105 Bumper Harness
17. J224 Body Harness
