X305 Body Harness to Floor Console Harness

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

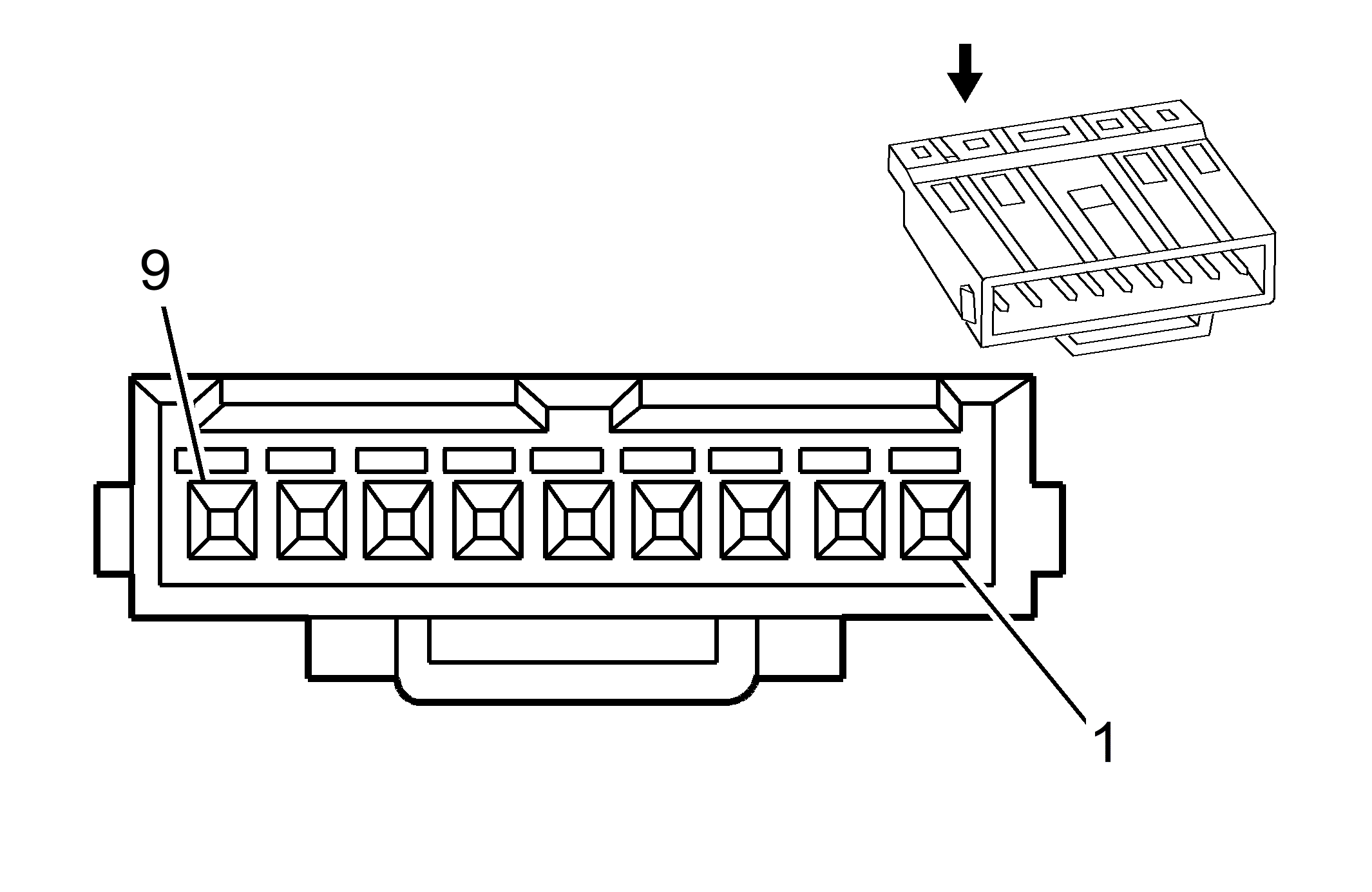

Connector Part Information Harness Type: Body OEM Connector: 968571-1 Service Connector: 93180750 Description: 9-Way F 0.64 Micro-Quadlock Series (GY)	Connector Part Information Harness Type: Floor Console OEM Connector: 0-0284803-1 Service Connector: Service by Harness - See Part Catalog Description: 9-Way M Micro-Quadlock Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13588065	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	19119730	J-35616-14 (GN)	J-38125-560	Not Available	Not Available	Not Available	Not Available
III	Not Required	J-35616-65B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.35	VT/WH	4417	II	-	Soft Top Roof Sensor Low Reference	1	0.35	VT/WH	4417	III	-
2	0.35	VT	5936	II	-	Folding Top Open Switch Signal	2	0.35	VT	5936	III	-
3	0.35	YE/BK	3248	II	-	Folding Top Close Switch Signal	3	0.35	YE/BK	3248	III	-
4	-	-	-	-	-	Not Occupied	4	-	-	-	-	-
5	0.5	BK	2050	I	-	Ground	5	0.5	BK	2050	III	-
6	0.35	YE	6817	II	-	LED Backlight Dimming Control	6	0.5	YE	6817	III	-
7	0.35	BU/YE	7176	II	-	All Windows Open Switch Signal	7	0.35	BU/YE	7176	III	-
8	0.35	BU/BK	7177	II	-	All Windows Close Switch Signal	8	0.35	BU/BK	7177	III	-
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
