X207 Body Harness to Instrument Panel Harness
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

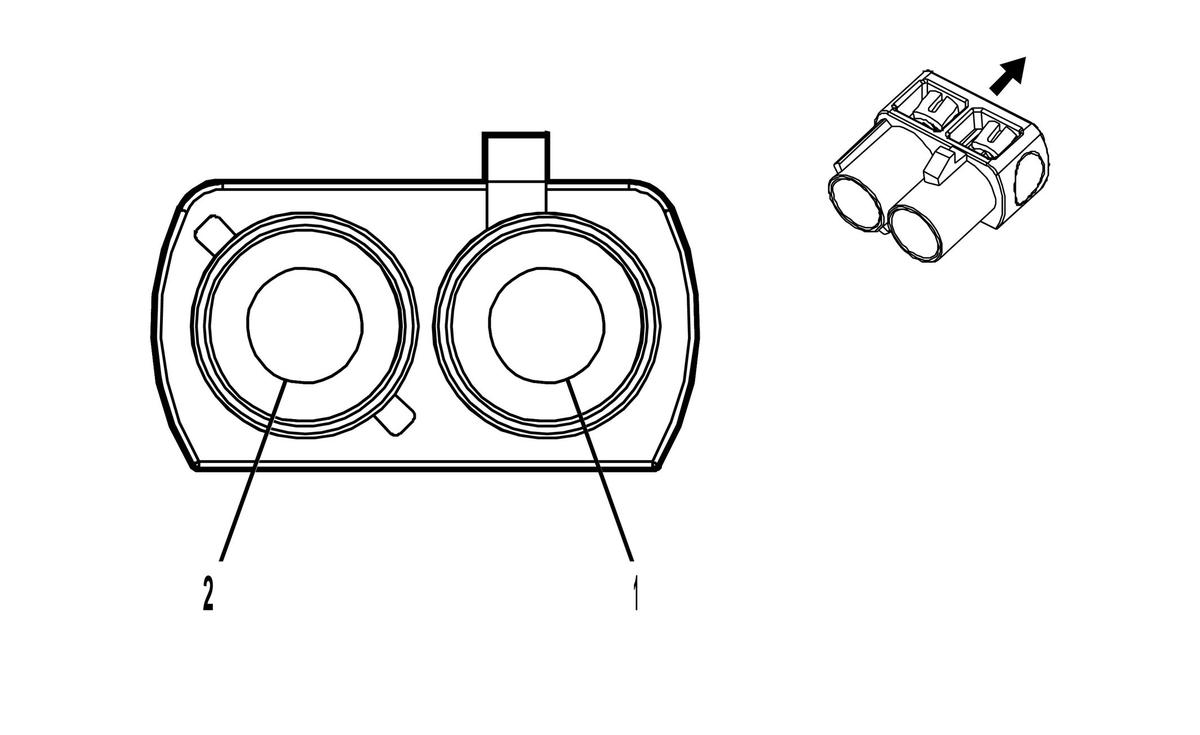

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 12784283
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BK)
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 12784299
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way M Coax Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax |
- |
I |
- |
(GPS/Cell) Coaxial Antenna Cell/GPS combined Signal |
- |
- |
Coax |
- |
I |
- |
