Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Transmission Mount (5) - Install

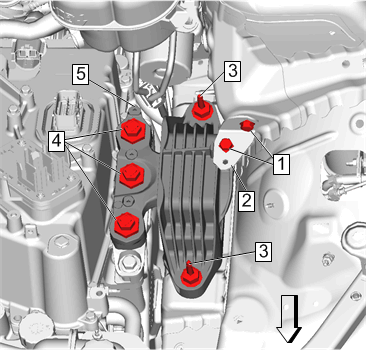

Fig 1: Transmission Mount Bolt
Courtesy of GENERAL MOTORS COMPANY
Transmission Mount Bolt (4) - Install [3x] - Hand tighten
CAUTION: Fastener Caution

CAUTION: Torque-to-Yield Fastener Caution

NOTE: Install NEW bolts.
Transmission Mount Bolt (3) - Install [2x] - Hand tighten
CAUTION: Torque-to-Yield Fastener Caution
Align the transmission mount and the powertrain unit to the previously made marks.
Transmission Mount Bolt (4) - Tighten [3x]
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: 60 - 75 degrees, use the EN-45059 meter
Transmission Mount Bolt (3) - Tighten 100 N.m (74 lb ft) [2x]
Install the transmission bracket (2).
Install the three wiring harness retainers and position the main wiring harness to the left frame rail.
Transmission Bracket bolt (1) - Install and tighten 22 N.m (16 lb ft)
Remove the jack.
Engine Wiring Harness Fuse Block Bracket - Install Engine Wiring Harness Fuse Block Bracket Replacement
Electronic Brake Control Module with Brake Pressure Modulator Valve - Install Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
Engine Wiring Harness Junction Block - Install Engine Wiring Harness Junction Block Replacement (With HP4)Engine Wiring Harness Junction Block Replacement (Without HP4)
