Engine Wiring Harness Fuse Block Bracket Replacement

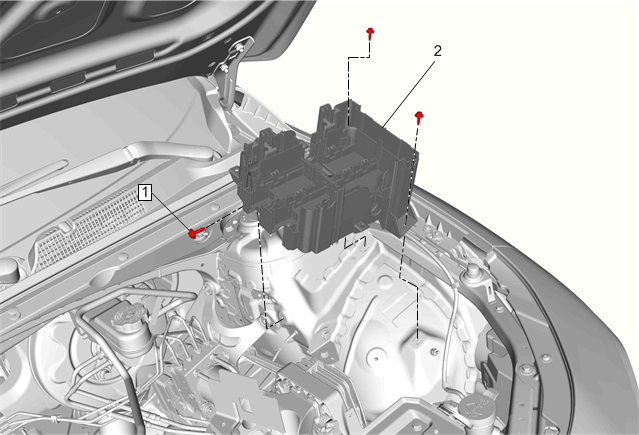

Fig 1: Engine Wiring Harness Fuse Block Bracket
GM4322822Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Wiring Harness Junction Block Replacement (With out HP4) .
1 Engine Wiring Harness Fuse Block Bracket Bolt [3x]
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)
2 Engine Wiring Harness Fuse Block Bracket
