Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the parking brake.
  2. Range Selector Lever Cable @ Automatic Transmission Range Selector Lever - Remove Range Selector Lever Cable Replacement
  3. Automatic Transmission Range Selector Lever Replacement
  4. Control Valve Body Cover Replacement  - Remove
  5. Automatic Transmission Wiring Harness Bracket - Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal
  6. Manual Shift Detent Lever Spring (1) - Remove

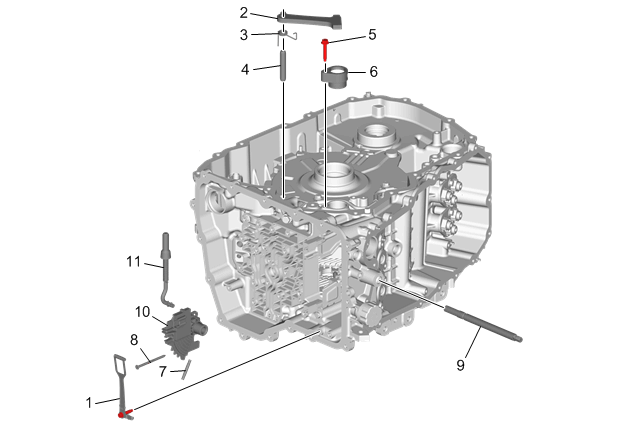

    Fig 1: Manual Shift Detent Lever With Shaft Position Switch Assembly And Park Pawl Actuator
    GM4037270Courtesy of GENERAL MOTORS COMPANY
    NOTE: Use lint free rags and cover internal transmission openings to prevent the pin from entering transmission cavities on removal.
  7. Manual Shift Detent Lever Pin (7) - Remove
  8. Manual Shift Shaft Pin (8) - Remove and DISCARD
  9. Manual Shift Detent Lever Shaft (9) - Remove
