Variable Low Clutch Plate Installation

WARNING: This page is about a different variant/trim than selected.

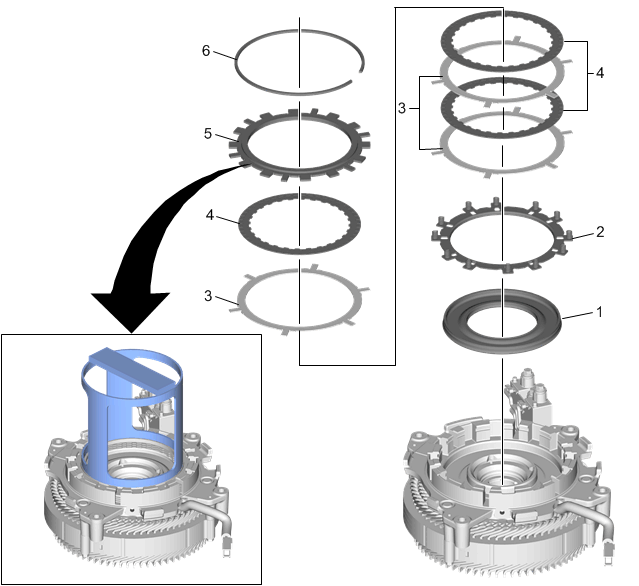

Fig 1: Variable Low Clutch Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage. Preliminary Procedure Service the variable low clutch with the variable high clutch installed onto the drive motor rotor. This will prevent contact of the drive motor stator copper end coils with the work surface.
1	Variable Low Clutch Piston
2	Variable Low Clutch Spring
3	Variable Low Clutch Plate [3x]
4	Variable Low Clutch Plate - Friction [3x]
5	Variable Low Clutch Backing Plate
6	Variable Low Clutch Backing Plate Retaining Ring - Selective Procedure Select the correct retaining ring. Refer to Variable Low Clutch Backing Plate Retaining Ring Measurement . Use DT-47694 compressor and a suitable press to install the retaining ring. Special Tools DT-47694 Piston Spring Compressor For equivalent regional tools, refer to Special Tools .
