Variable High Clutch Backing Plate Retaining Ring Measurement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Assemble the variable high clutch. Refer to Variable High Clutch Assemble . |
| 1 |

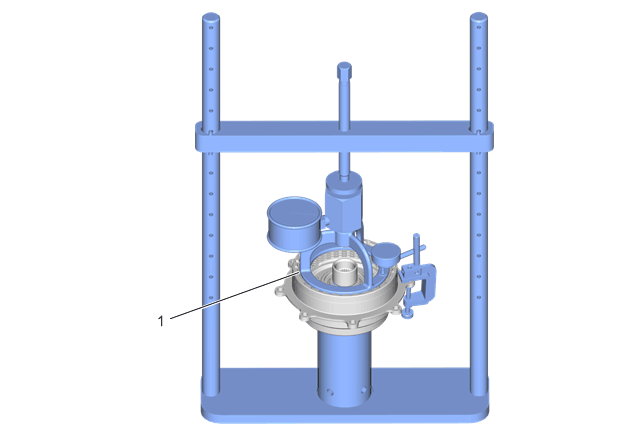

Variable High Clutch Backing Plate Retaining Ring Procedure
- Assemble the tools as shown and clamp the DT-50900
fixture to the bench.
- Apply 20 pounds of pressure to the load gauge by turning the screw on the DT-50900
fixture clockwise.
- Zero out the dial indicator.
- Remove the pressure on the load gauge by turning the screw on the DT-50900
fixture one full turn counterclockwise.
- Apply 50 PSI of compressed air and simultaneously adjust the screw on the DT-50900
fixture to apply 20 pounds of pressure to the load gauge.
- Observe the dial indicator measurement. Refer to Clutch Backing Plate Retaining Ring Specifications to determine the correct variable high clutch backing plate retaining ring.
Special Tools
- DT-50900
Clutch Travel Support Fixture
- DT-50903
Clutch Travel Load Gauge
- DT-50905
Clutch Travel Air Adapter
- DT-51627
Clutch Travel Air Adapter
- GE-8001
Dial Indicator Set
- J-23327-1
Clutch Spring Compressor
For equivalent regional tools, refer to Special Tools . |
