Variable High Clutch Plate Installation
WARNING: This page is about a different variant/trim than selected.

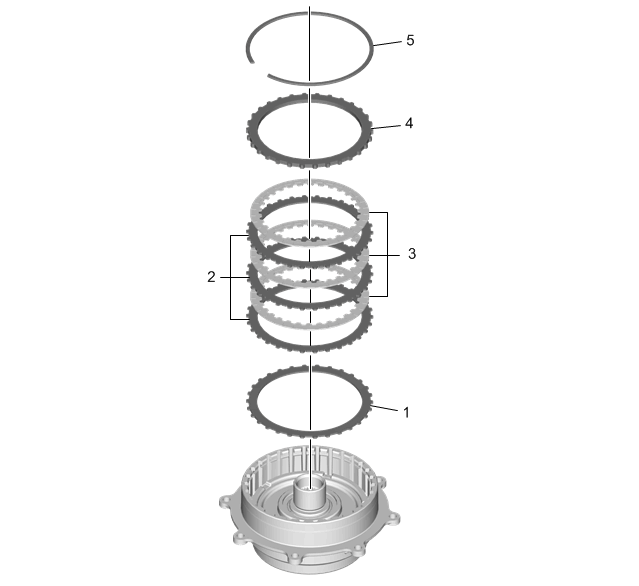

Variable High Clutch Plate Installation
| Callout | Component Name |
|---|---|
| 1 | Variable High Clutch Waved Plate |
| 2 | Variable High Clutch Plate [3x] |
| 3 | Variable High Clutch Plate - Friction [3x] |
| 4 | Variable High Clutch Backing Plate |
| 5 | Variable High Clutch Backing Plate Retaining Ring Procedure Select the correct retaining ring. Refer to Variable High Clutch Backing Plate Retaining Ring Measurement . |
