Drive Motor Power Inverter Module Installation

WARNING: This page is about a different variant/trim than selected.

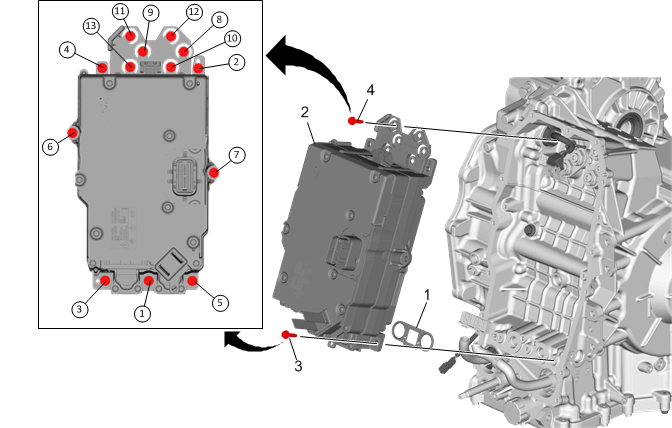

Fig 1: Drive Motor Power Inverter Module (With Bolt Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ensure the drive motor power inverter module cavity is free of debris and coolant before installation.
1	Drive Motor Power Inverter Module Fluid Seal Procedure Ensure proper operation of the seal after installation of the drive motor power inverter module. Refer to Drive Motor Power Inverter Module Fluid Seal Pressure Test . NOTE: Install a NEW seal.
2	Drive Motor Power Inverter Module
3	Drive Motor Power Inverter Module Bolt [7x] CAUTION: Refer to Fastener Caution . Procedure Use threadlocker blue on the bolt threads. Refer to Adhesives, Fluids, Lubricants and Sealers . Tighten 9 N.m (80 lb in)
4	Drive Motor Power Inverter Module 3-Phase Buss Bar Bolt [6x] Procedure Connect the 3 drive motor power inverter module connectors after the drive motor power inverter module is installed. Ensure the wiring harness is routed properly and the wires are in the plastic conduit to prevent cut or chaffed wires. Tighten 9 N.m (80 lb in)
