Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Intake Manifold Gasket (2) - Install

Fig 1: Intake Manifold
Courtesy of GENERAL MOTORS COMPANY

NOTE: Install a NEW gasket.
Intake Manifold (1) - Install
Intake Manifold Bolt - Install [7x]

Fig 2: Intake Manifold Bolt
Courtesy of GENERAL MOTORS COMPANY

NOTE: Simplified graphic: Intake manifold is shown without intake manifold cover absorber.
Intake Manifold Bolt - Tighten in sequence [7x] 25 N.m (18 lb ft)
CAUTION: Fastener Caution
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Intake Manifold Brace (1) - Install

Fig 3: Intake Manifold Brace Bolt
Courtesy of GENERAL MOTORS COMPANY
Intake Manifold Brace Bolt (2) - Install and tighten [2x] 10 N.m (89 lb in)
Lower the vehicle. Refer to Lifting and Jacking the Vehicle
Throttle Body Assembly Replacement - Install

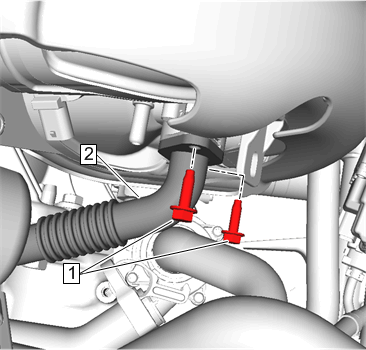

Exhaust Gas Recirculation Cooler Outlet Pipe (2) @ Intake Manifold - Connect

Fig 4: Exhaust Gas Recirculation Cooler Outlet Pipe Bolt
Courtesy of GENERAL MOTORS COMPANY
Exhaust Gas Recirculation Cooler Outlet Pipe Bolt (1) - Install [2x] - Exhaust Gas Recirculation Cooler Outlet Pipe Replacement (To Fuel Heater Return Hose)Exhaust Gas Recirculation Cooler Outlet Pipe Replacement (To Intake Manifold)

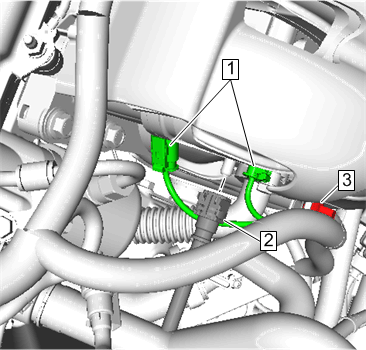

Connect the electrical connectors. (1)

Fig 5: Evaporative Emission Canister Purge Pipe
Courtesy of GENERAL MOTORS COMPANY
Evaporative Emission Canister Purge Pipe (2) - Connect Plastic Collar Quick Connect Fitting Service
Clip the engine wiring harness retainer (3) to the intake manifold.
Air Cleaner Outlet Duct Replacement - Install
Intake Manifold Cover Replacement - Install
