Throttle Body Assembly Replacement
WARNING: This page is about a different variant/trim than selected.

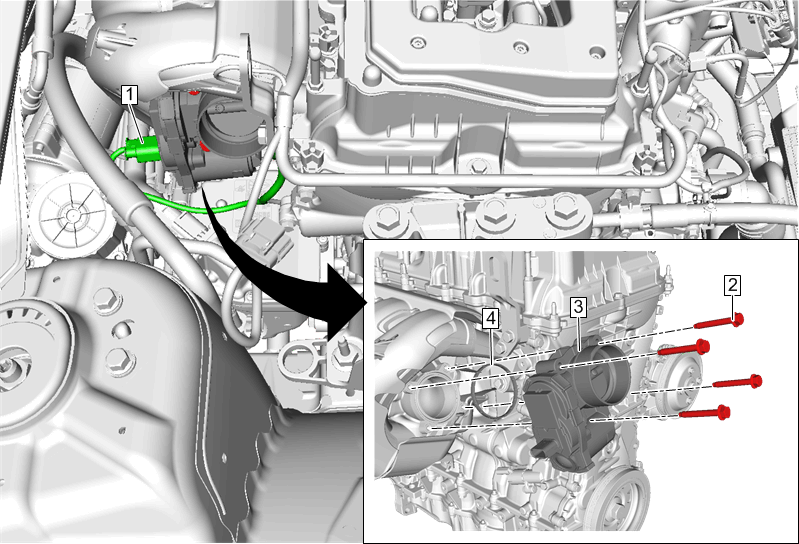

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Duct Replacement |
|
| 1 | Electrical Connector |
| 2 | Throttle Body Bolt [4x]
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 3 | Throttle Body Procedure Perform the throttle or idle learn procedure. Throttle or Idle Learn
NOTE:
Clean any debris prior to removing the throttle body. Cover any openings to prevent debris from entering into the intake manifold.
|
| 4 | Throttle Body Gasket Procedure Install a NEW throttle body gasket. |
