Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Intake Manifold Cover Replacement  - Remove
  2. Air Cleaner Assembly Replacement - Remove
  3. Engine Support Fixture  - Install
  4. Engine Mount Brace Nut (1) - Remove

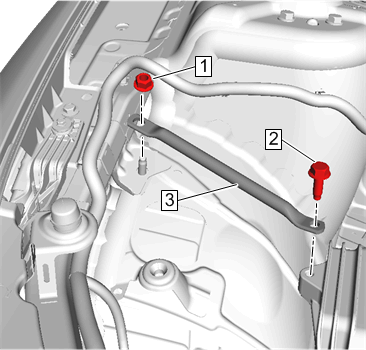

    Fig 1: Engine Mount Brace Nut
    GM4292415Courtesy of GENERAL MOTORS COMPANY
  5. Engine Mount Brace Bolt (2) - Remove
  6. Engine Mount Brace (3) - Remove
  7. Engine Mount Bolt (1) - Remove and DISCARD [3x]
    Fig 2: Engine Mount Bolt
    GM4292418Courtesy of GENERAL MOTORS COMPANY
  8. Engine Mount Bolt (1) - Remove and DISCARD [2x]

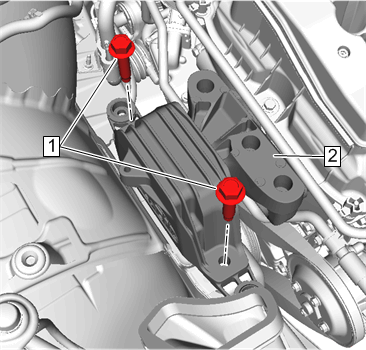

    Fig 3: Engine Mount
    GM4292416Courtesy of GENERAL MOTORS COMPANY
  9. Engine Mount (2) - Remove
