Engine Support Fixture

WARNING: This page is about a different variant/trim than selected.

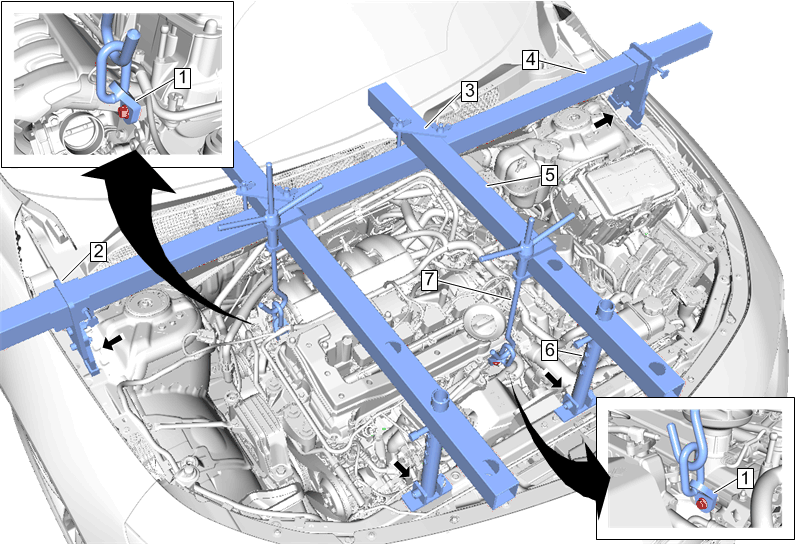

Fig 1: Engine Support Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Assembly Replacement Air Cleaner Outlet Duct Replacement Camshaft Position Actuator Solenoid Valve Solenoid Replacement - Intake Special Tools EN-36857 Engine Lift Bracket EN-51007-1 Main Support Beam EN-51007-3 Radiator Support Beam EN-51007-4 Clamp EN-51007-5 Support Leg, Front EN-51007-6 Hook EN-51007-7 Support Leg, Side Equivalent regional tools:Special Tools
1	EN-36857 Engine Lift Bracket Procedure If engine lift brackets are not present, install EN-36857 engine lift brackets as needed.
2	EN-51007-7 Support Leg, Side Procedure NOTE: Ensure that the engine support fixture only contacts the frame in the area indicated by arrows. Do not install on top of fender lip. Install the N-51007-7 Support Leg, Side to frame as shown.
3	EN-51007-4 Clamp
4	EN-51007-1 Main Support Beam
5	EN-51007-3 Radiator Support Beam
6	EN-51007-5 Support Leg, Front
7	EN-51007-6 Hook
