Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Intake Manifold Cover - Remove Intake Manifold Cover Replacement
Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)

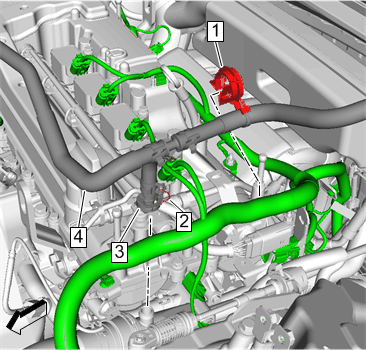

Engine Coolant Air Bleed Hose (3) @ Water Outlet - Disconnect Engine Coolant Air Bleed Hose Replacement (LKN Radiator Surge Tank to Water Outlet to Exhaust Gas Recirculation Cooler Outlet Pipe)

Fig 1: Engine Coolant Air Bleed Hose
Courtesy of GENERAL MOTORS COMPANY
Disconnect the automatic transmission range selector lever cable (1) from the automatic transmission range selector lever cable lever and automatic transmission range selector lever cable bracket (2). Refer to Range Selector Lever Cable Replacement

Fig 2: Transmission Range Selector Lever Cable
Courtesy of GENERAL MOTORS COMPANY

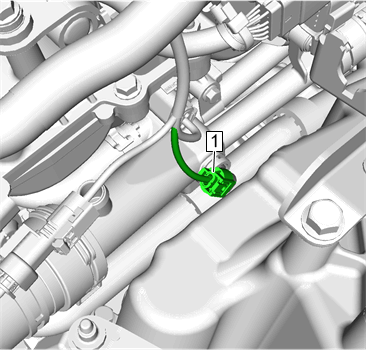

Electrical Connector (1) - Disconnect

Fig 3: Electrical Connector
Courtesy of GENERAL MOTORS COMPANY

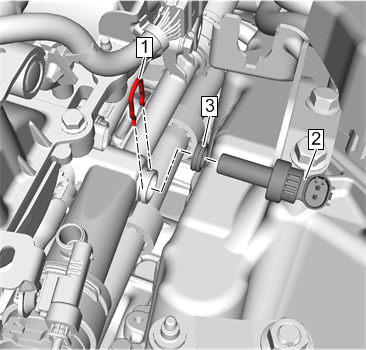

Engine Coolant Temperature Sensor Retainer (1) - Unclip

Fig 4: Engine Coolant Temperature Sensor Retainer
Courtesy of GENERAL MOTORS COMPANY
Engine Coolant Temperature Sensor (2) - Remove
Engine Coolant Temperature Sensor Seal (3) - Inspect the seal and replace if necessary.
NOTE: The seal is reusable, inspect the seal and replace if damaged.
