Instrument Panel Trim Pad Replacement - Left Side

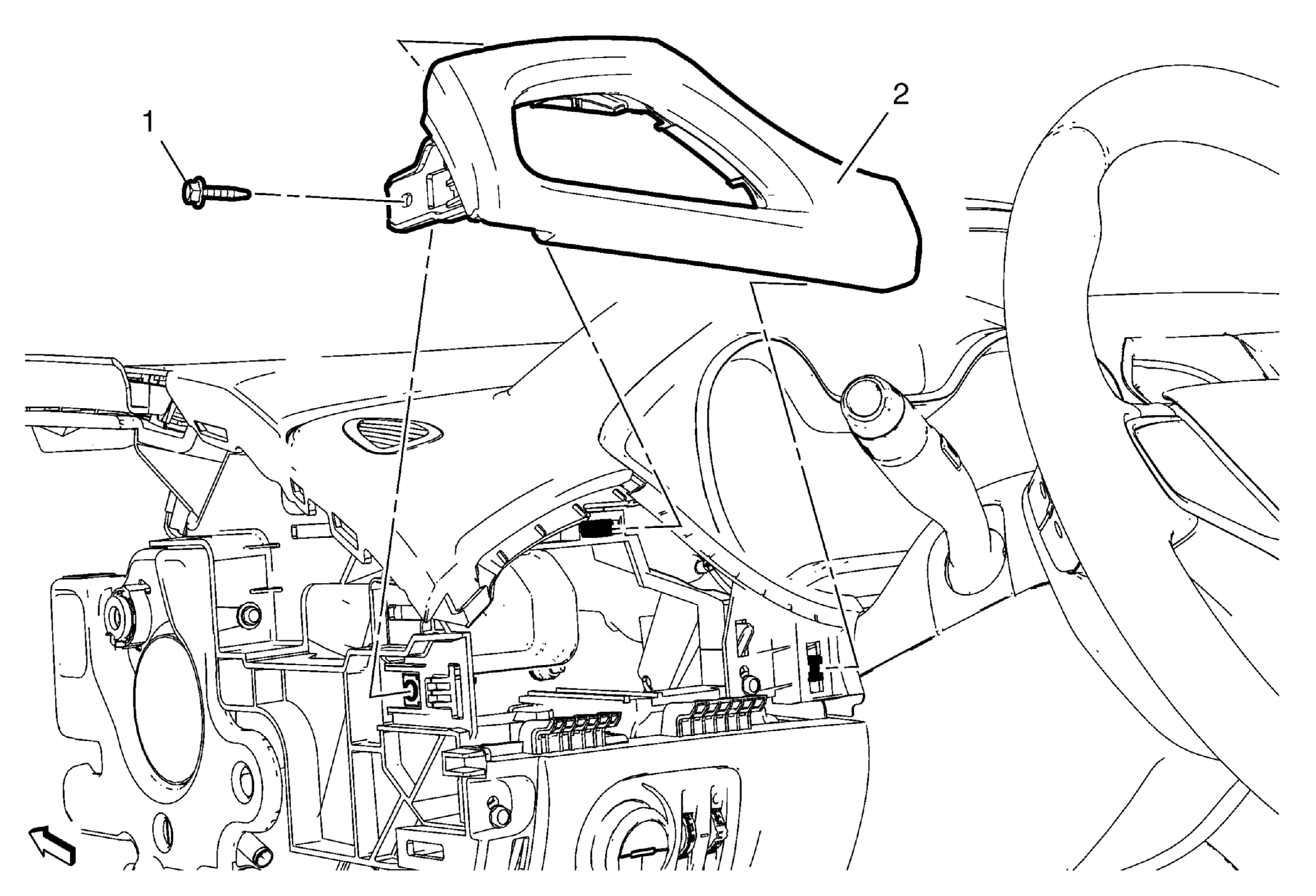

Fig 1: Instrument Panel Trim Pad - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Outer Trim Cover Replacement - Left Side
1	Instrument Panel Trim Pad Fastener CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Trim Pad Procedure  Remove Instrument Panel Outer Air Outlet - Left Side -Instrument Panel Outer Air Outlet Replacement - Left Side
