Instrument Panel Outer Trim Cover Replacement - Left Side

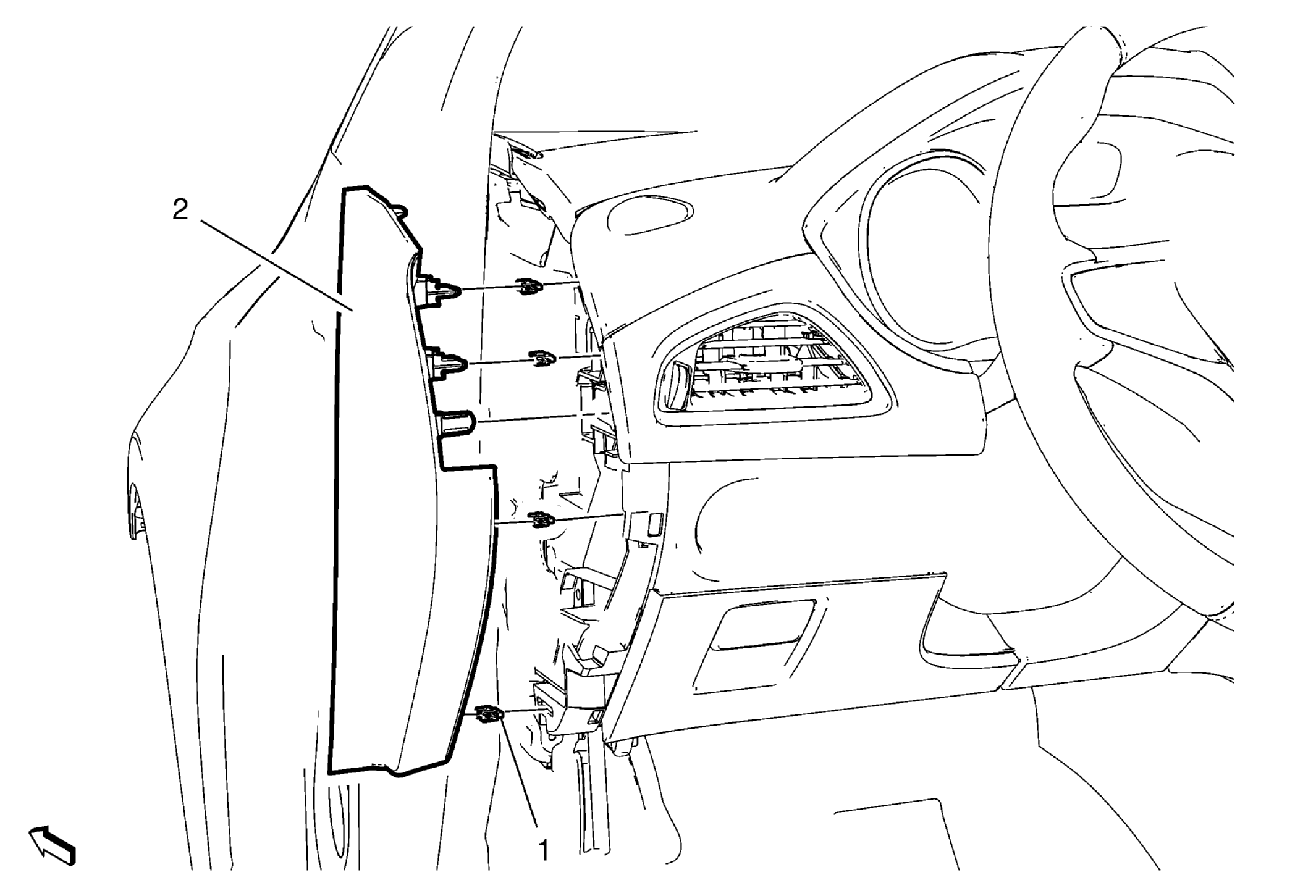

Fig 1: Instrument Panel Outer Trim Cover - Left Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Outer Trim Cover Retainer (Qty: 4)
2
Instrument Panel Outer Trim Cover - Left
Procedure
Loosen Retainer
Use a flat bladed plastic trim tool.
