Instrument Panel Outer Air Outlet Replacement - Left Side

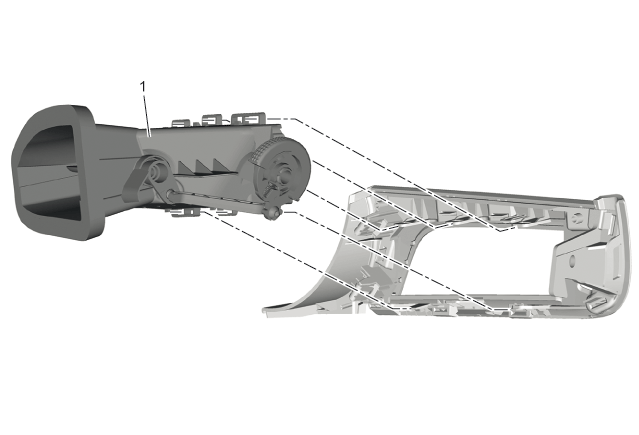

Fig 1: Instrument Panel Outer Air Outlet - Left Side
GM4067514Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Pad Replacement - Left Side
1 Instrument Panel Outer Air Outlet - Left Side
Procedure
Release the clips with a suitable tool.
