Rear Seat Strut Replacement

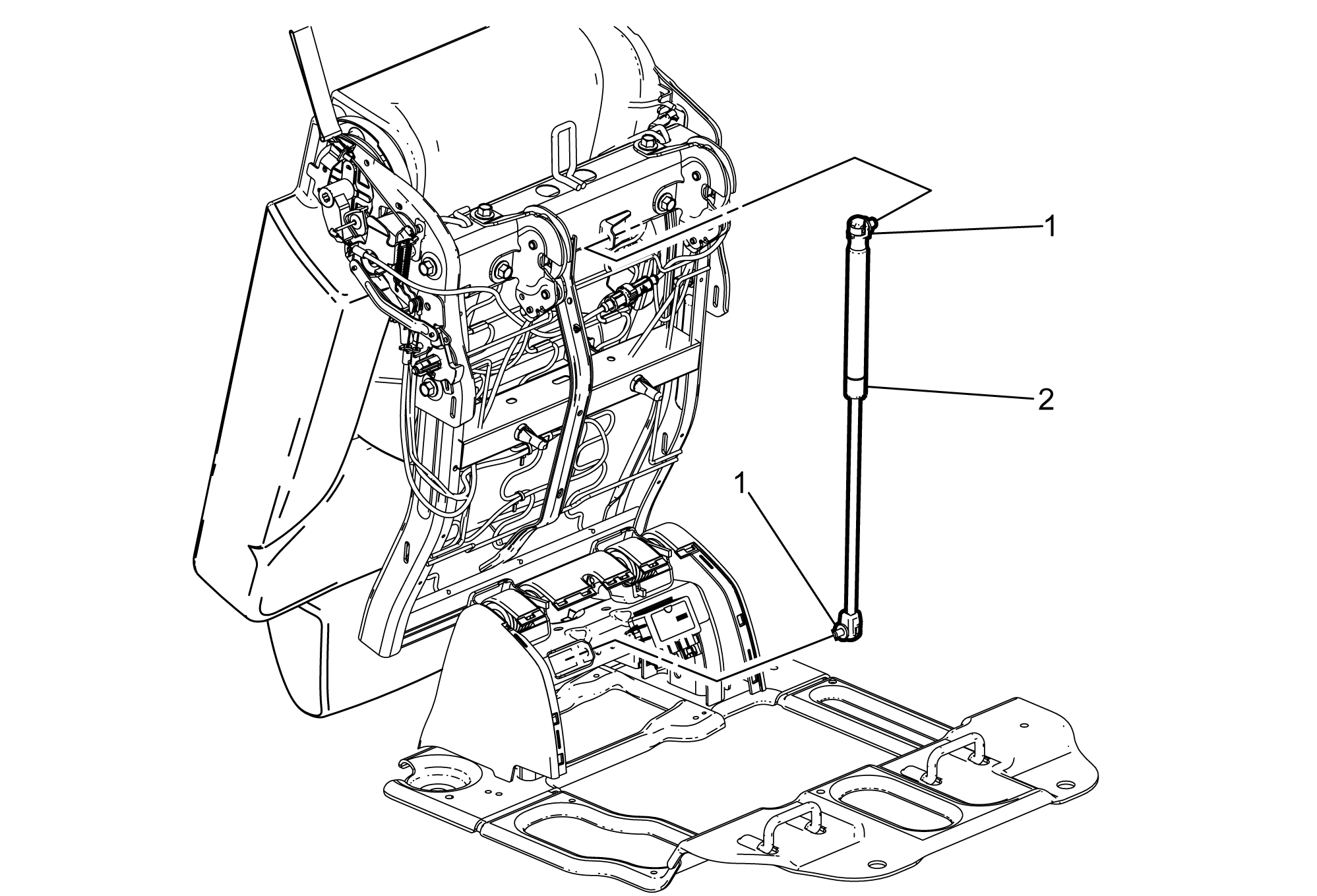

Fig 1: Rear Seat Strut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat riser opening finish cover. Refer to Rear Seat Riser Opening Finish Cover Replacement . Remove the rear seat cushion trim panel. Refer to Rear Seat Cushion Trim Panel Replacement (60/40 Bench) Rear Seat Cushion Trim Panel Replacement (Bucket) .
1	Rear Seat Strut Clip (Qty: 2) Procedure Tilt the seat assembly up and forward to gain access to the clip.
2	Rear Seat Strut

Callout

Component Name

Preliminary Procedures

Rear Seat Strut Clip (Qty: 2)
Procedure
Tilt the seat assembly up and forward to gain access to the clip.

Rear Seat Strut
