Rear Seat Cushion Trim Panel Replacement (60/40 Bench)

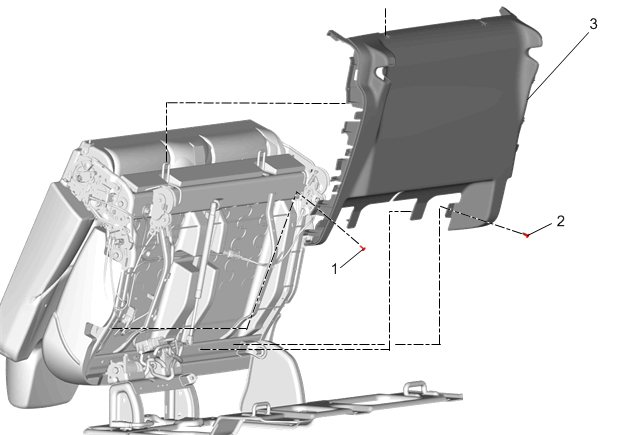

Fig 1: Rear Seat Cushion Trim Panel (60/40 Bench)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Rear Seat Cushion Inner Panel. Refer to Rear Seat Cushion Inner Panel Replacement Remove Rear Seat Cushion Outer Trim Panel. Refer to Rear Seat Cushion Outer Trim Panel Replacement Remove Rear Seat Riser Finish Cover. Refer to Rear Seat Riser Finish Cover Replacement NOTE: The 60% seat is shown, the 40% seat is similar.
1	Rear Seat Cushion Trim Panel Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in) Procedure Release the rear seat latch to fold up the seat and gain access to the latch finish cover fastener
2	Rear Seat Cushion Trim Panel Retainer (Qty: 2)
3	Rear Seat Cushion Trim Panel Procedure Release the tabs with the metal retaining clips. Remove the cushion trim panel by pulling the panel upward over the rear frame wire hooks.
