Heater and Air Conditioning Remote Control Replacement (Module)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

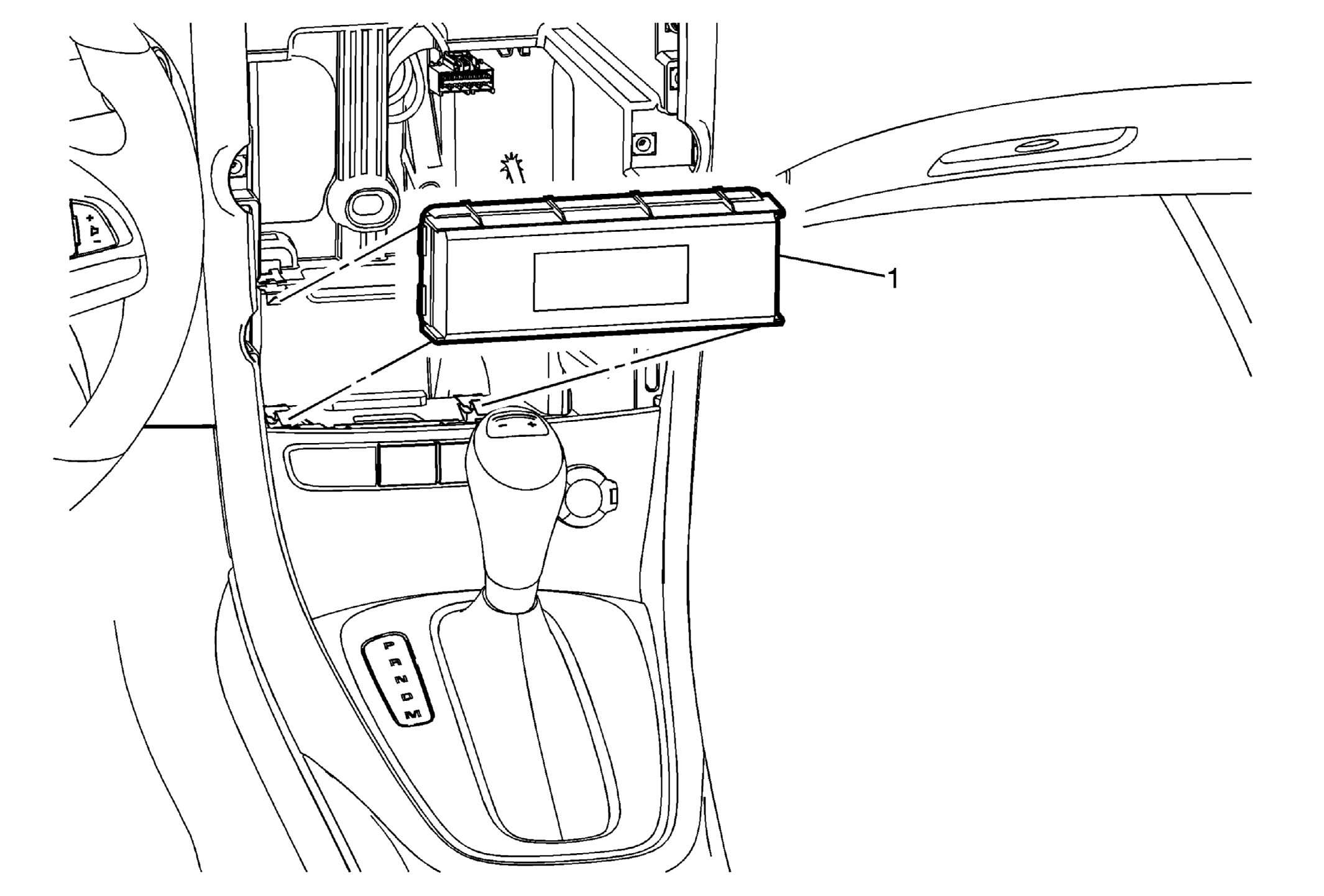

Fig 1: Heater And Air Conditioning Remote Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) and Battery Negative Cable Disconnection and Connection (With Start/Stop) . Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement . Remove the instrument Panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1	Heater and Air Conditioning Remote Control Procedure Disconnect the heater and air conditioning remote control connector. For programming and set up information, refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) and Battery Negative Cable Disconnection and Connection (With Start/Stop) .
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
Remove the instrument Panel trim plate. Refer to Instrument Panel Trim Plate Replacement .

Heater and Air Conditioning Remote Control

Procedure

Disconnect the heater and air conditioning remote control connector.
For programming and set up information, refer to Control Module References .
