Instrument Panel Trim Plate Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

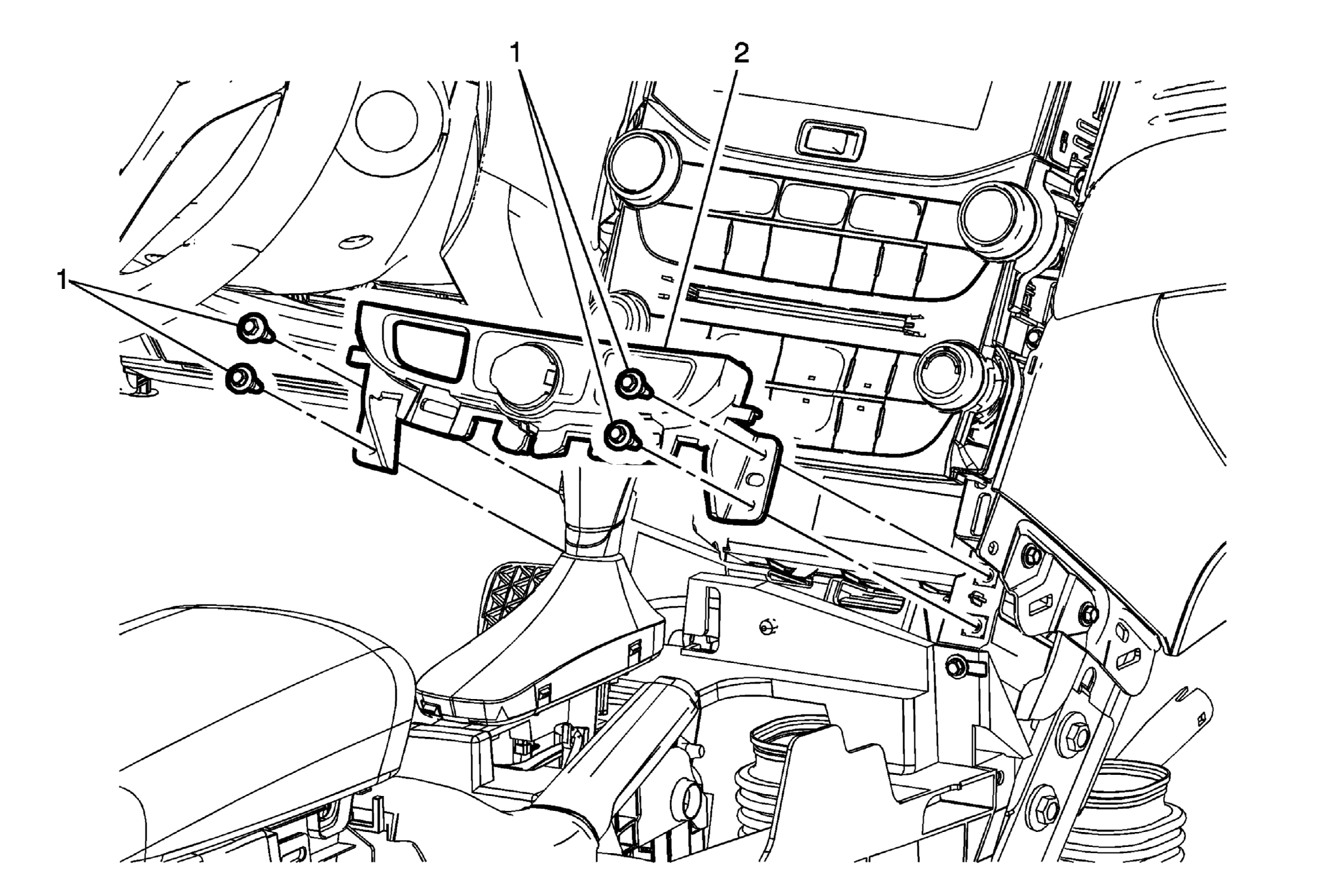

Fig 1: Instrument Panel Trim Plate & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side . Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side .
1	Instrument Panel Trim Plate Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Plate Assembly Procedure Disconnect electrical connections. When replacing the instrument panel trim plate, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side .
Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side .

Instrument Panel Trim Plate Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Trim Plate Assembly

Procedure

Disconnect electrical connections.
When replacing the instrument panel trim plate, transfer all necessary components.
