Heater and Air Conditioning Control Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

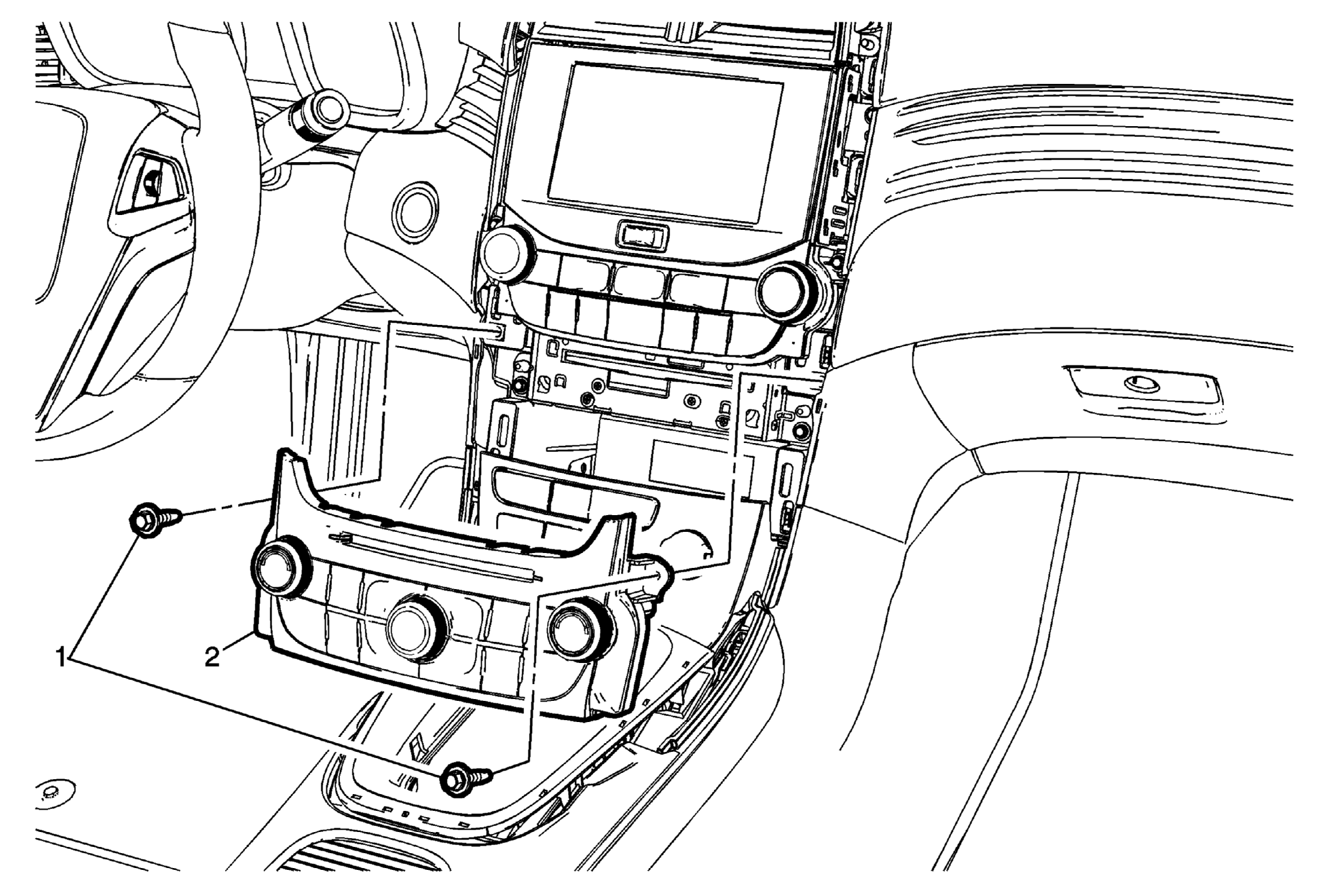

Fig 1: Heater and Air Conditioning Control (With RPO C60)

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement . Remove the instrument panel trim plate assembly. Refer to Instrument Panel Trim Plate Replacement .
1	Heater and Air Conditioning Control Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Heater and Air Conditioning Control Procedure Disconnect the heater and air conditioning control electrical connections.

Call out

Component Name

Preliminary Procedure

Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
Remove the instrument panel trim plate assembly. Refer to Instrument Panel Trim Plate Replacement .

Heater and Air Conditioning Control Fasteners (Qty: 2)

CAUTION: Refer to Fastener Caution .

Heater and Air Conditioning Control
Procedure
Disconnect the heater and air conditioning control electrical connections.
