Heater Inlet Hose Replacement (LKW)

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

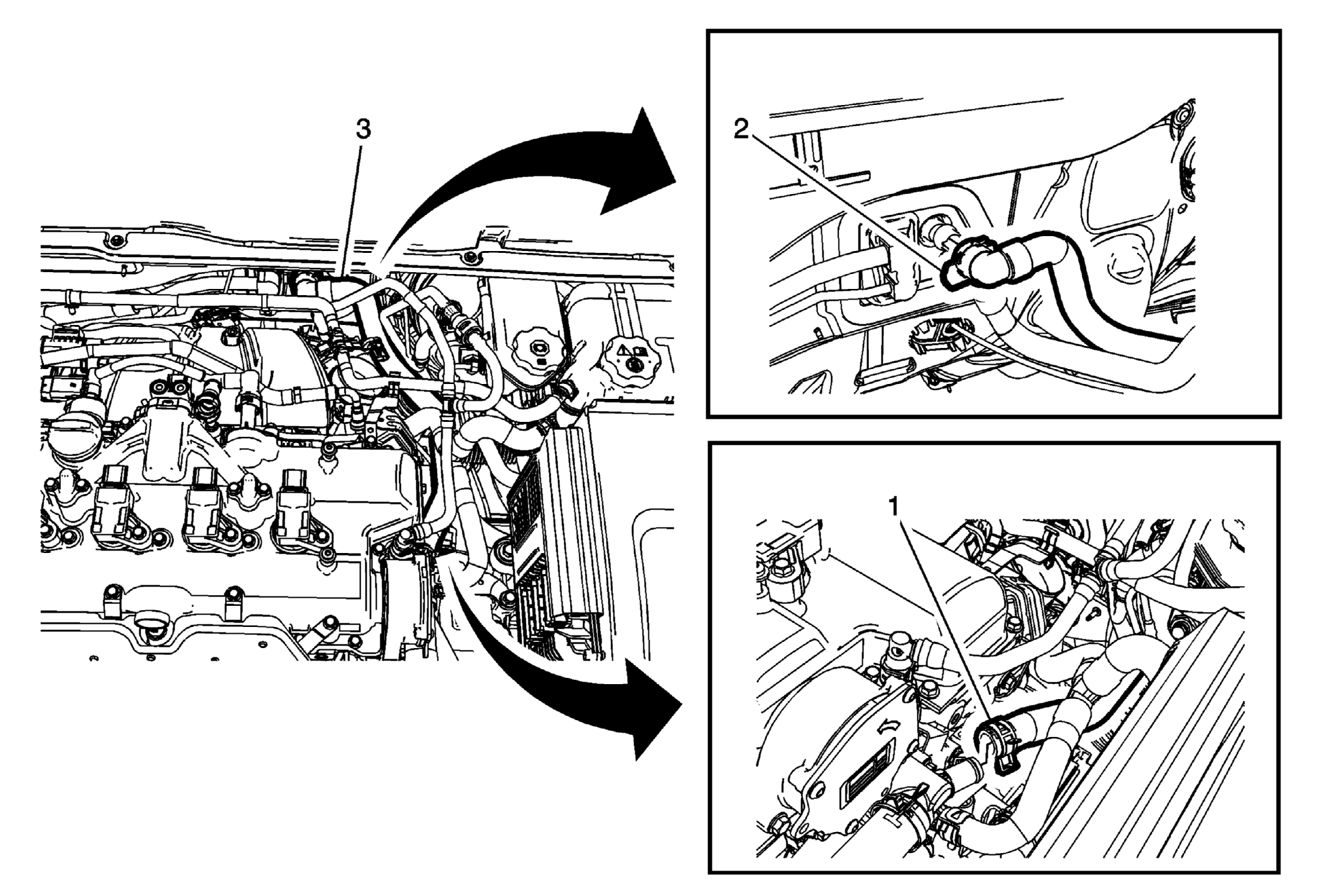

Fig 1: Heater Inlet Hose (LKW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) and Cooling System Draining and Filling (Static) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LKW) . Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LKW) . Reposition the engine control module. Refer to Engine Control Module Replacement (LKW) .
1	Heater Inlet Hose Clamp Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Heater Inlet Hose Clip
3	Heater Inlet Hose
