Instrument Panel Cluster Trim Plate Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

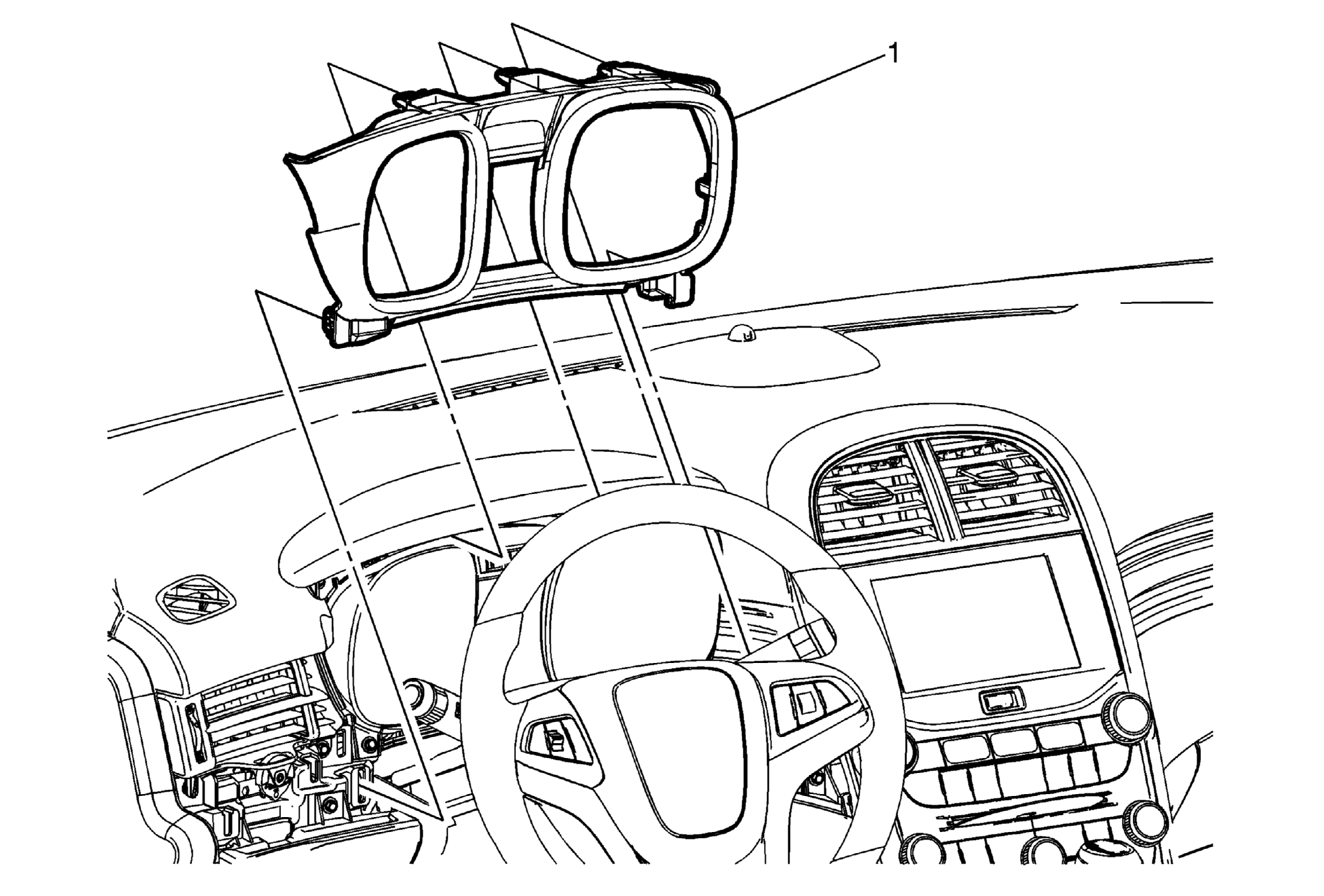

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel instrument driver knee bolster pad. Refer to Instrument Panel Driver Knee Bolster Pad Replacement . Remove the instrument panel lower trim pad. Refer to Instrument Panel Lower Trim Pad Replacement (With BTM) and Instrument Panel Lower Trim Pad Replacement (Without BTM) .
1	Instrument Panel Cluster Trim Plate Procedures Position the steering column to its lowest possible position. Use a flat bladed plastic trim tool in order to release the retainer clips securing the cluster trim plate to the instrument panel assembly.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel instrument driver knee bolster pad. Refer to Instrument Panel Driver Knee Bolster Pad Replacement .
Remove the instrument panel lower trim pad. Refer to Instrument Panel Lower Trim Pad Replacement (With BTM) and Instrument Panel Lower Trim Pad Replacement (Without BTM) .

Instrument Panel Cluster Trim Plate

Procedures

Position the steering column to its lowest possible position.
Use a flat bladed plastic trim tool in order to release the retainer clips securing the cluster trim plate to the instrument panel assembly.
