Instrument Panel Lower Trim Pad Replacement (Without BTM)
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

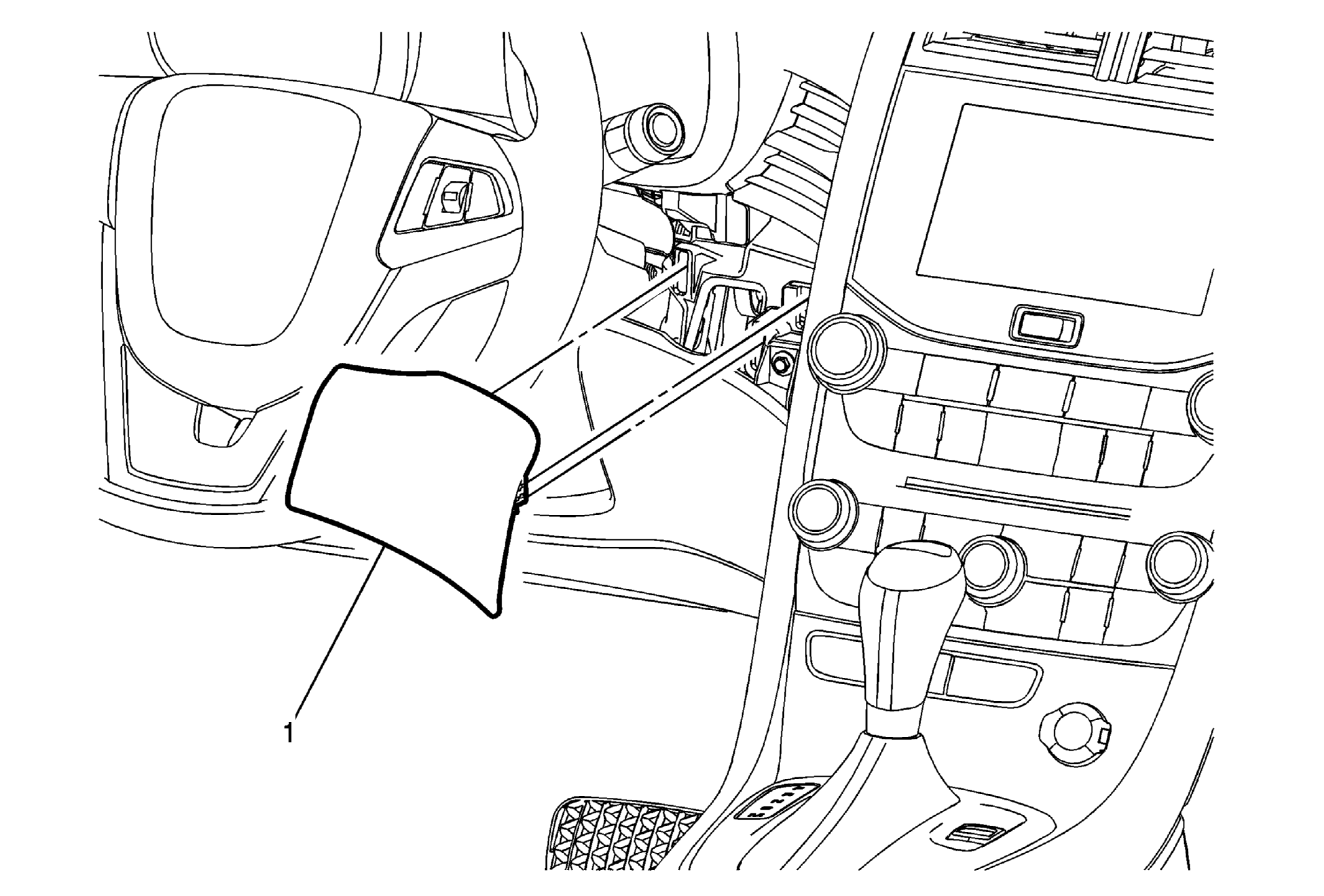

| Callout |
Component Name |
| 1 |
Instrument Panel Lower Trim Pad Assembly
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel lower trim pad to the instrument panel assembly. |
