Instrument Panel Driver Knee Bolster Pad Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

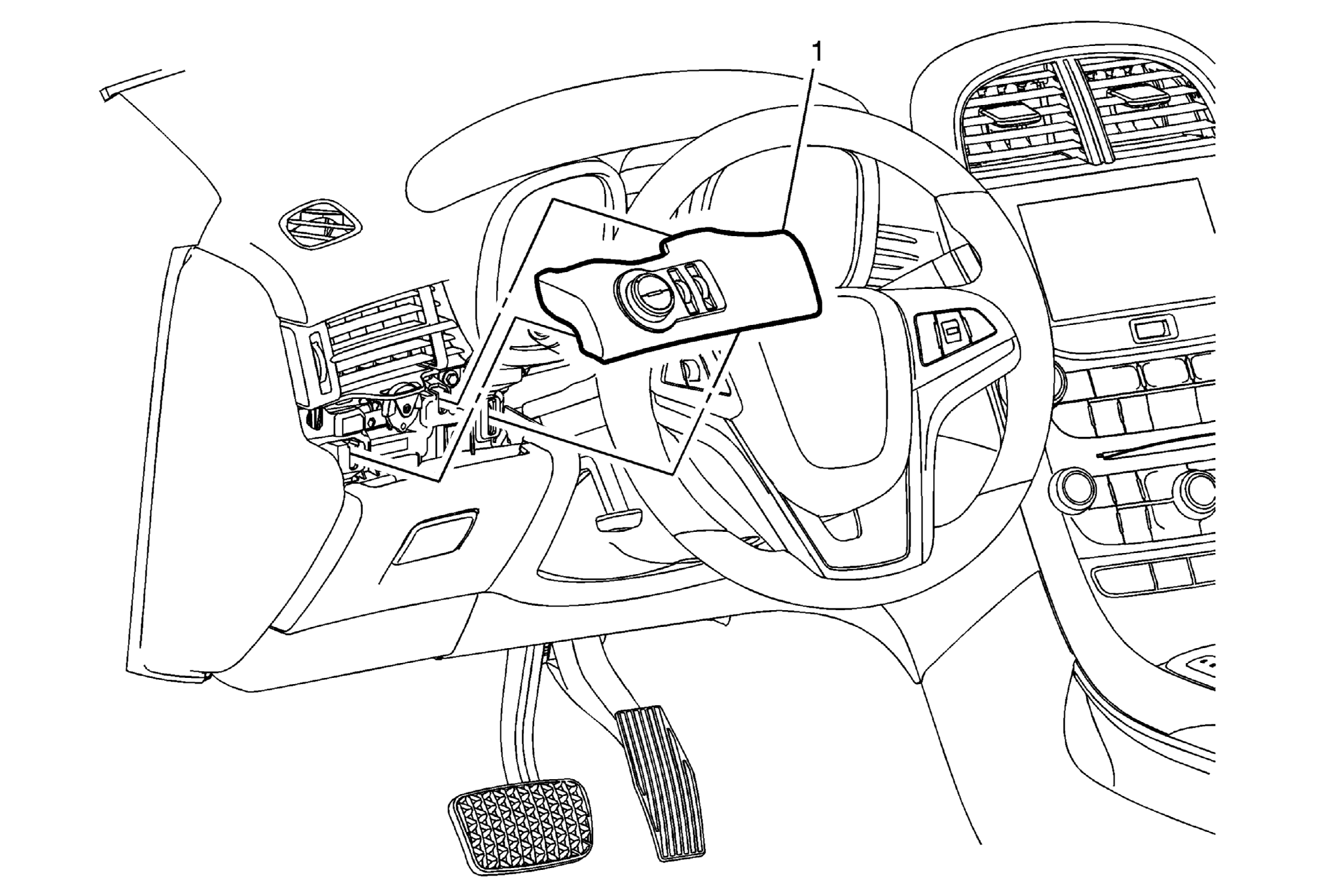

| Callout |
Component Name |
| 1 |
Instrument Panel Driver Knee Bolster Pad Assembly Procedures
- Use a flat bladed plastic trim tool in order to release the retainer clips securing the driver knee bolster pad to the instrument panel assembly.
- Disconnect electrical connections.
- When replacing the instrument panel driver knee bolster pad, transfer all necessary components.
|
