Front Floor Console Assembly Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

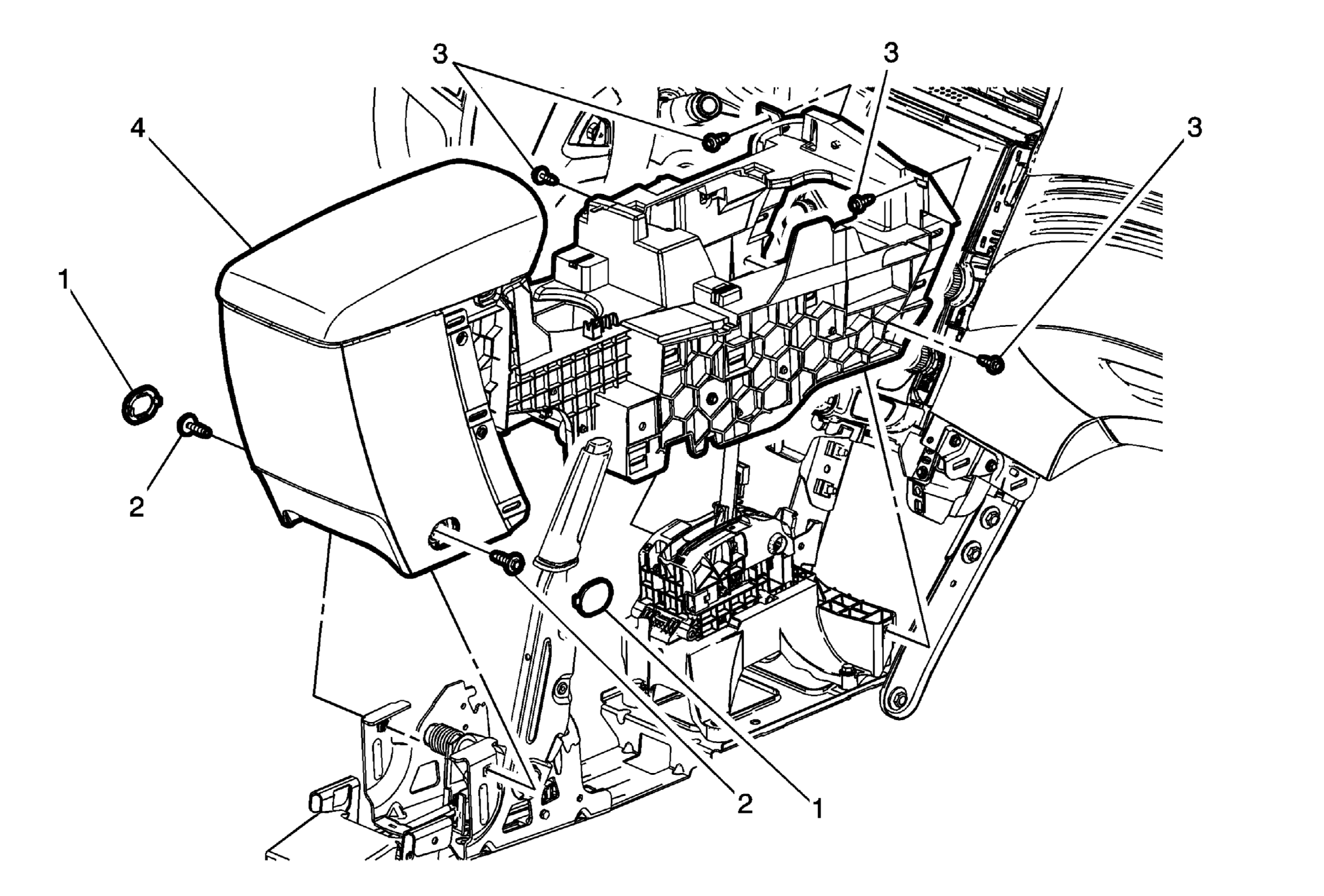

Fig 1: Front Floor Console Assembly Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement . Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Rear Side Cover (Qty: 2) Procedure Remove the plastic fastener covers in order to gain access to the rear fasteners.
2	Front Floor Console Rear Side Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Front Floor Console Fastener (Qty: 4) Tighten 2.5 N.m (22 lb in)
4	Front Floor Console Assembly Procedure Block the drive wheels. Apply the parking brake. Place the transmission control in the Neutral position. Disconnect the electrical connectors. Transfer components as necessary. NOTE: Depending on option content, it may be required to remove the right lower instrument panel support brace in order to easily access the electrical connections.
