Front Floor Console Rear Trim Panel Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

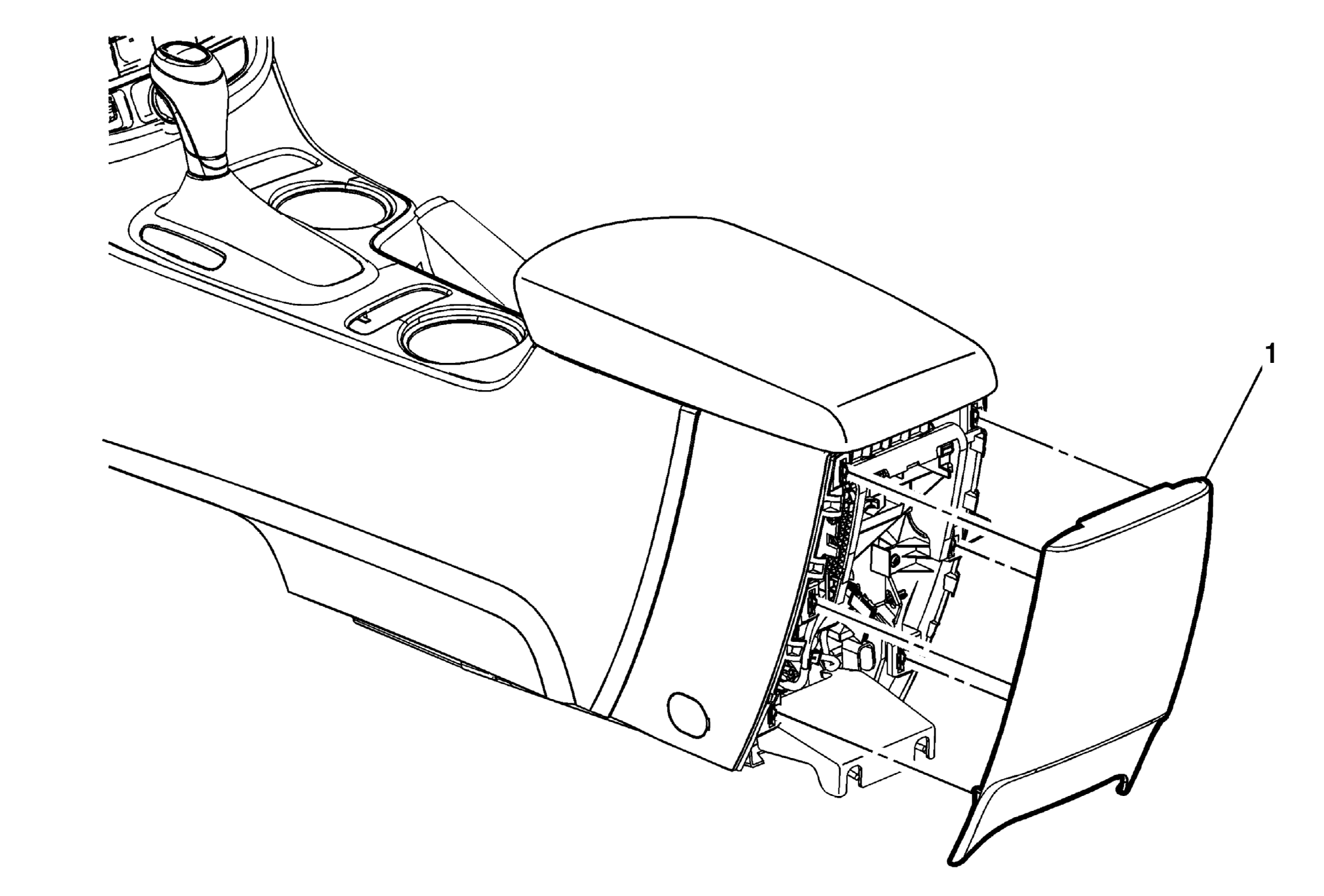

| Callout |
Component Name |
| 1 |
Front Floor Console Rear Trim Panel Assembly Procedure
- Use a flat bladed plastic trim tool in order to release the retainer clips securing the front floor console rear trim panel to the console assembly.
- Disconnect electrical connections, if equipped.
- When replacing the front floor console rear trim panel, transfer all necessary components.
|
