Hood Strut Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

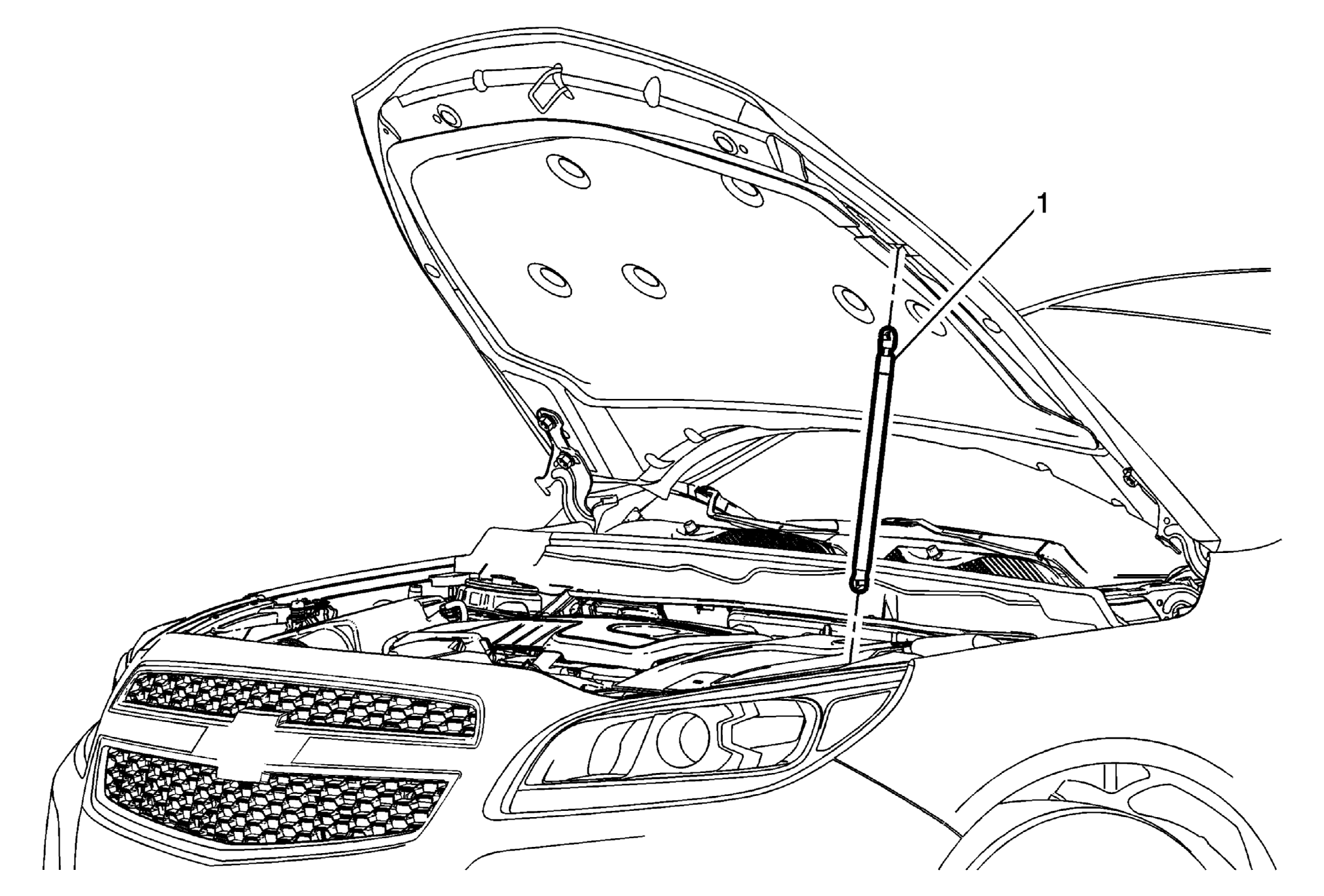

Fig 1: Hood Strut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Strut Assembly WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. TIP: Remove the metal clip at the ends of the hood strut, then pull away from the stud.

Callout

Component Name

Hood Strut Assembly

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

TIP: Remove the metal clip at the ends of the hood strut, then pull away from the stud.
