Front Bumper Fascia Center Support Replacement

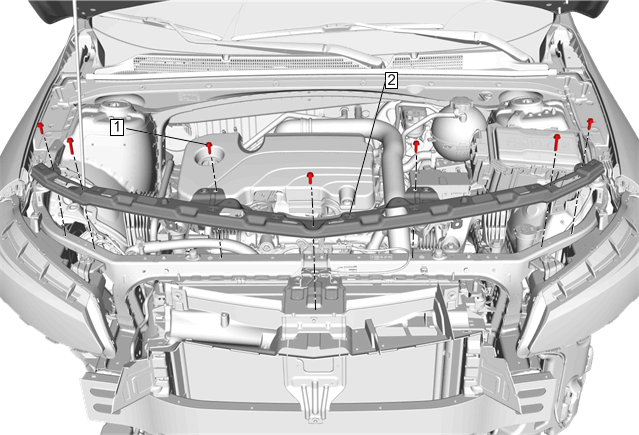

Fig 1: Front Bumper Fascia Center Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Hood Secondary Latch Replacement
1	Front Bumper Fascia Center Support Bolt (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Bumper Fascia Center Support

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Center Support Bolt (Qty: 7)

CAUTION:

Tighten
9 N.m (80 lb in)

Front Bumper Fascia Center Support
