Hood Secondary Latch Replacement

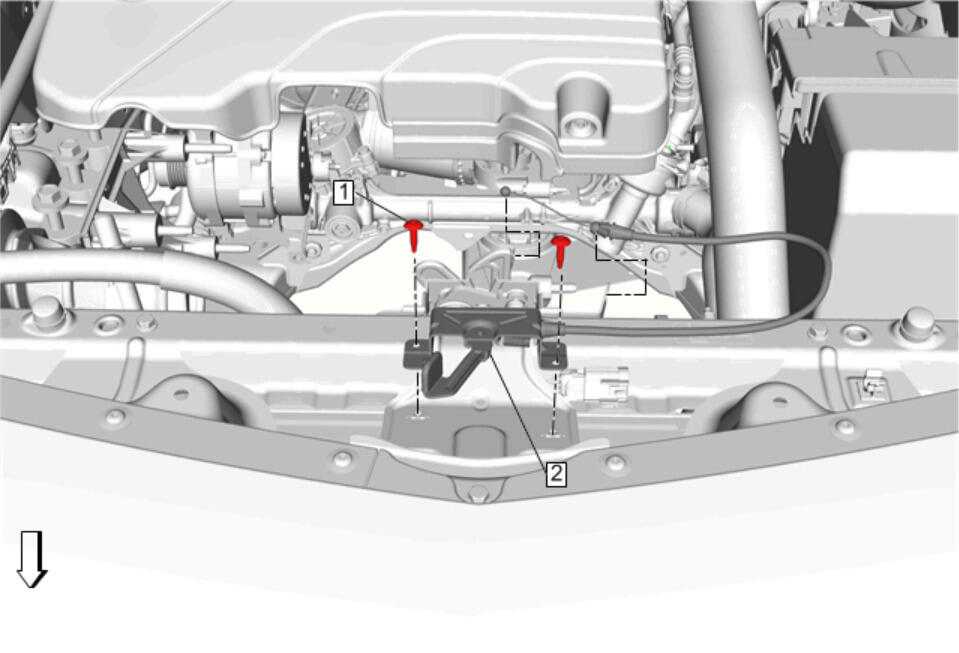

Fig 1: Hood Secondary Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Secondary Latch Release Handle Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hood Secondary Latch Procedure Release the hood secondary latch cable from the primary and secondary latch
