Left Side of Engine Compartment Harness Routing

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

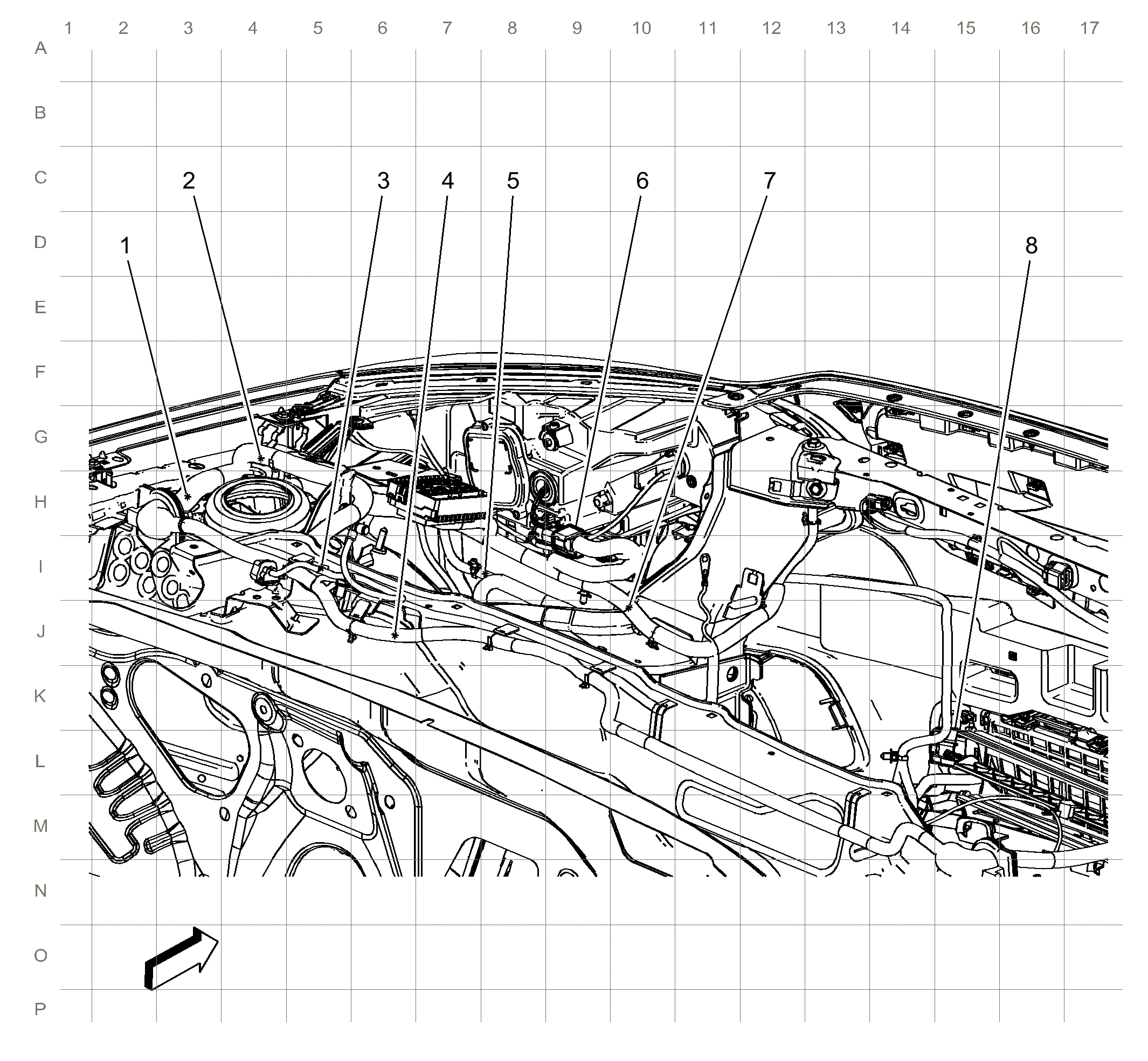

Fig 1: Left Side of Engine Compartment Harness Routing
GM3708538Courtesy of GENERAL MOTORS COMPANY
Items
J115
J113
J114
J116 (T3U)
J118
X110 (T4A) X110 Forward Lamp Harness to Left Headlamp Harness (T4A+1FL/1LS)X110 Forward Lamp Harness to Left Headlamp Harness (B69)
J101
X125 X125 Ambient Air Temp Sensor Harness to Forward Lamp Harness
