X110 Forward Lamp Harness to Left Headlamp Harness (T4A-1FL/1LS)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

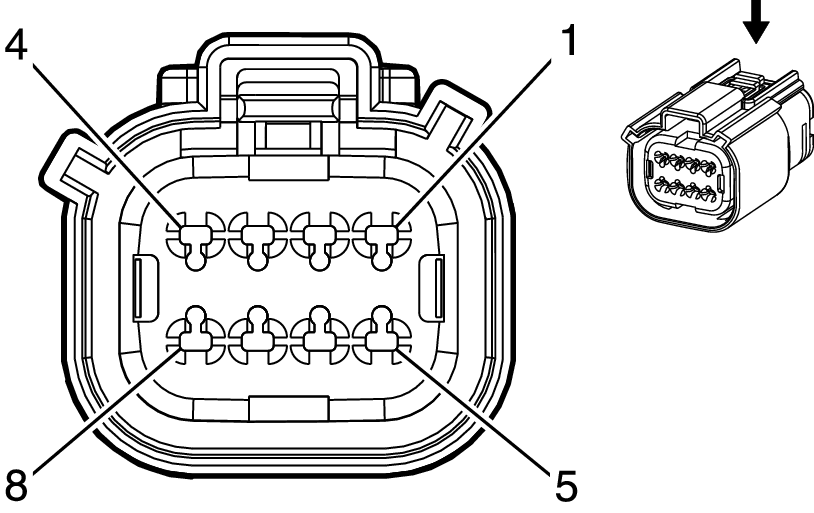

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13916068
- Service Connector: 19119920
- Description: 8-Way F 150 MX Series, Sealed (L-GY)
|

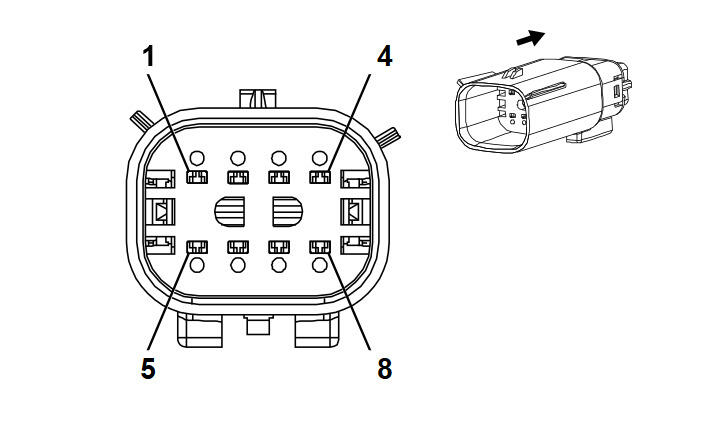

Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
709 |
I |
- |
Left Park Lamp Control |
1 |
0.5 |
VT/GY |
709 |
II |
- |
| 2 |
1 |
BK |
1150 |
I |
- |
Ground |
2 |
1 |
BK |
1150 |
II |
- |
| 3 |
0.5 |
VT/GY |
709 |
I |
- |
Left Park Lamp Control |
3 |
0.5 |
VT/GY |
709 |
II |
- |
| 4 |
0.5 |
D-BU/WH |
1314 |
I |
- |
Left Front Turn Signal Lamp Control |
4 |
0.5 |
D-BU/WH |
1314 |
II |
- |
| 5 |
1 |
BK |
1150 |
I |
- |
Ground |
5 |
1 |
BK |
1150 |
II |
- |
| 6 |
0.75 |
YE |
712 |
I |
- |
Left Headlamp Low Beam Control |
6 |
0.75 |
YE |
712 |
II |
- |
| 7 |
0.75 |
WH |
711 |
I |
- |
Left Headlamp High Beam Control |
7 |
0.75 |
WH |
711 |
II |
- |
| 8 |
- |
- |
- |
- |
- |
Not Occupied |
8 |
- |
- |
- |
- |
- |
