X125 Ambient Air Temp Sensor Harness to Forward Lamp Harness (VIR)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

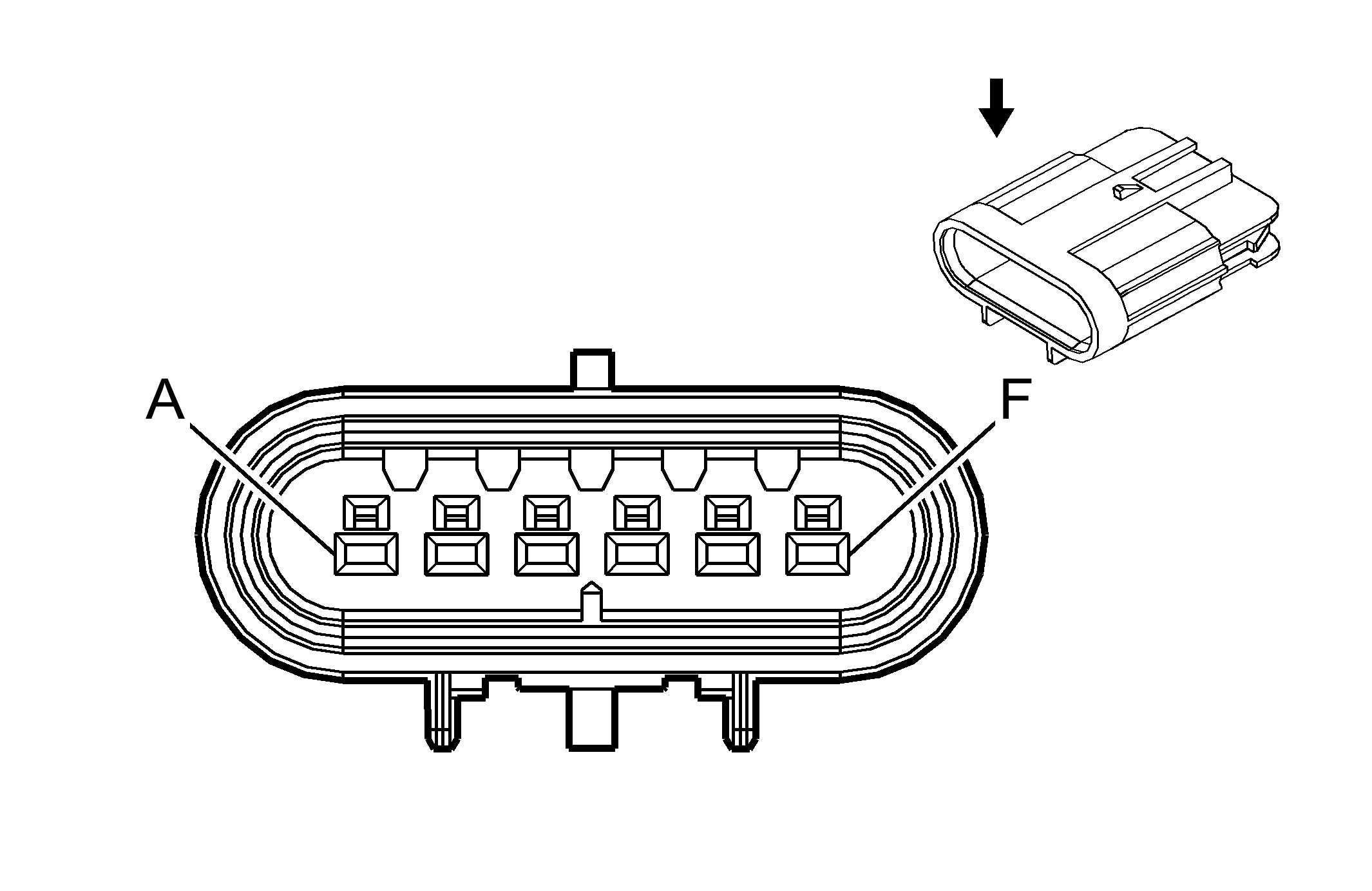

Connector Part Information
- Harness Type: Ambient Air Temp Sensor
- OEM Connector: 15397577
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 150 GT Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 15397579
- Service Connector: 19300328
- Description: 6-Way M 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| A |
0.5 |
D-BU/GY |
636 |
I |
- |
Outside Ambient Air Temperature Sensor Signal |
A |
0.5 |
D-BU/GY |
636 |
II |
- |
| B |
0.5 |
BK/D-BU |
61 |
I |
- |
Outside Ambient Temperature Sensor Low Reference |
B |
0.5 |
BK/D-BU |
61 |
II |
- |
| C |
- |
- |
- |
- |
- |
Not Occupied |
C |
- |
- |
- |
- |
- |
| D |
0.35 |
VT/BK |
339 |
I |
- |
Run/Crank Ignition 1 Voltage |
D |
0.5 |
VT/BK |
339 |
II |
- |
| E |
0.35 |
GY/BK |
3437 |
I |
- |
Shutter Valve Solenoid Control |
E |
0.35 |
GY/BK |
3437 |
II |
- |
| F |
0.35 |
BK |
1150 |
I |
- |
Ground |
F |
0.5 |
BK |
1150 |
II |
- |
