Liftgate Harness Routing

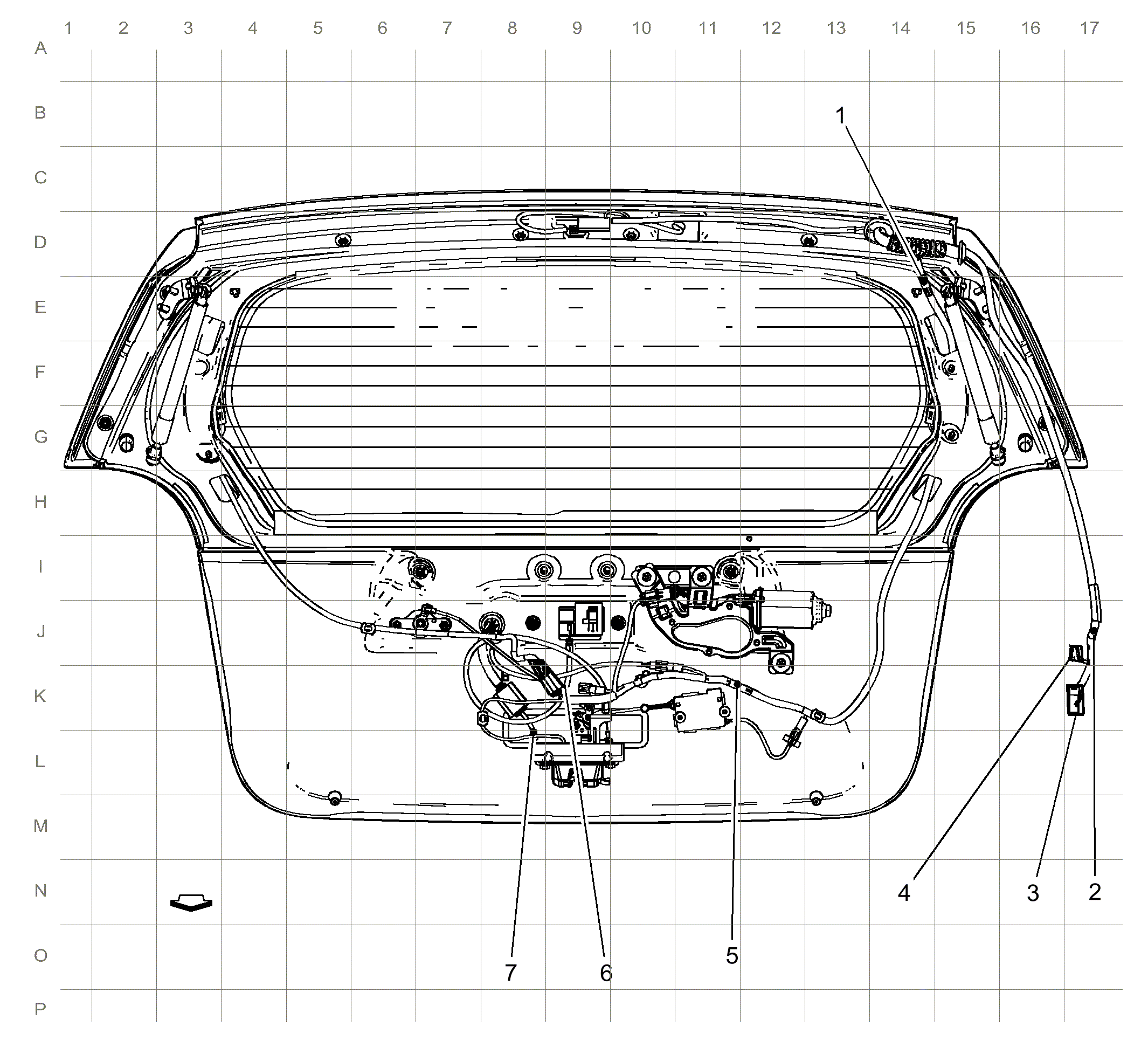

Fig 1: Liftgate Harness Routing
GM3214080Courtesy of GENERAL MOTORS COMPANY
Items
1:J902
2:J900
3:X900 X900 Liftgate Harness to Body Harness
4:X905 ((UVC)) X905 Liftgate Harness to Body Harness
5:J903
6:X902 X902 Liftgate Harness to Liftgate Harness
7:J901 (UVC)
